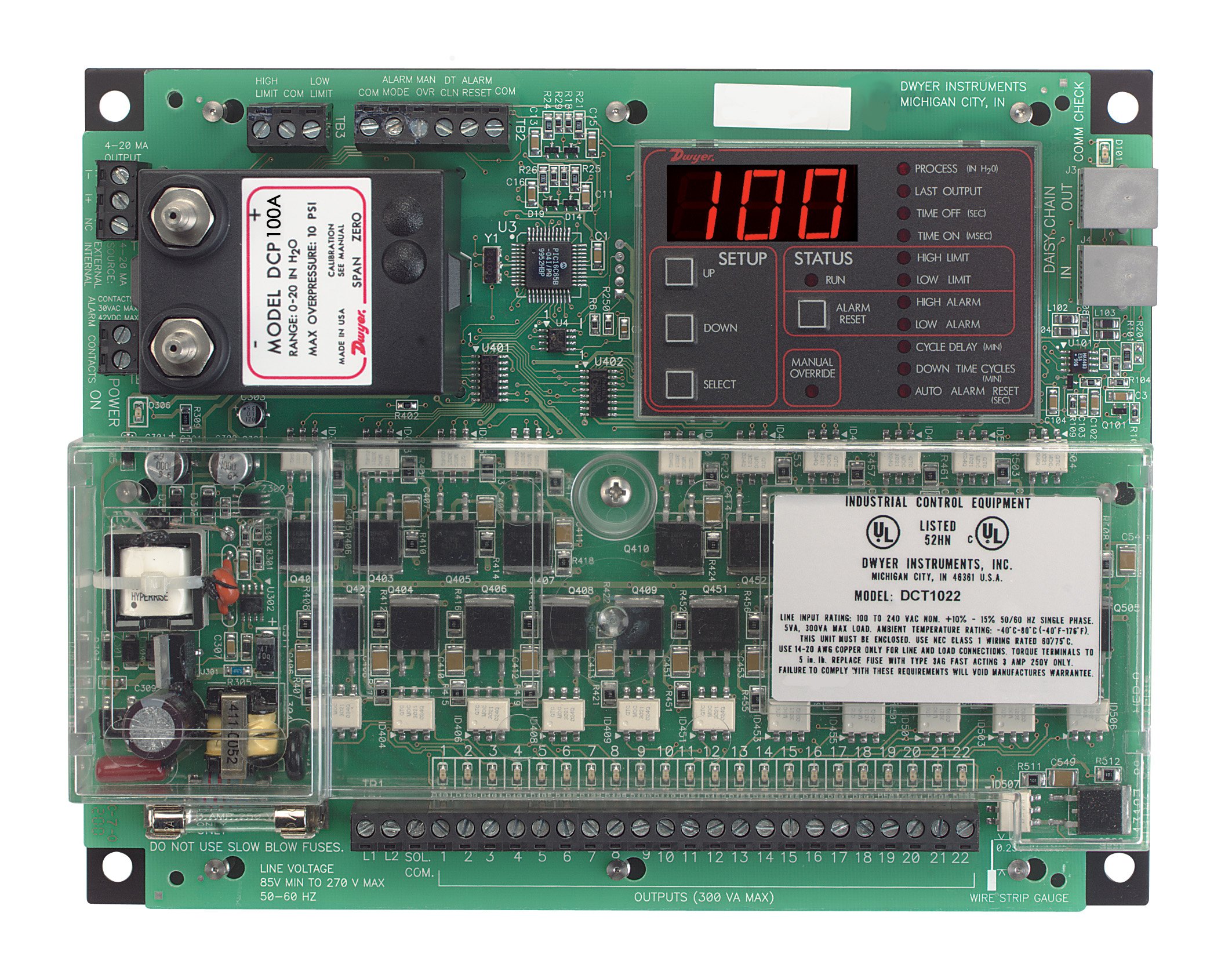

Offering a universal power supply, the DCT1000 accepts 85-270 VAC/VDC at either 50 or 60 Hz for both domestic and overseas requirements. The units modular design allows for use as a continuous cleaning control or on-demand cleaning control using the optional plug-in pressure module. A 4-20 mA process output is integral to the plug-in pressure module, eliminating the need to purchase an expensive process transmitter. Mounting holes are standard to other dust collector controllers used in the industry, allowing you to use the DCT1000 for existing installations.
Power Requirements 85 to 270 VAC, 50 or 60 Hz. Power Consumption 5 W.
Temperature Limits -40 to 140°F (-40 to 60°C). Storage Temperature Limits -40 to 176°F (-40 to 80°C).
Solenoid Supply 3A maximum per channel.
Fuse 3 A @ 250 VAC. Low voltage control circuitry is isolated from the line voltage for system safety.
On-time Accuracy ±10 msec. Off-time Accuracy ±1% of the value or ±50 msec, whichever is greater.
