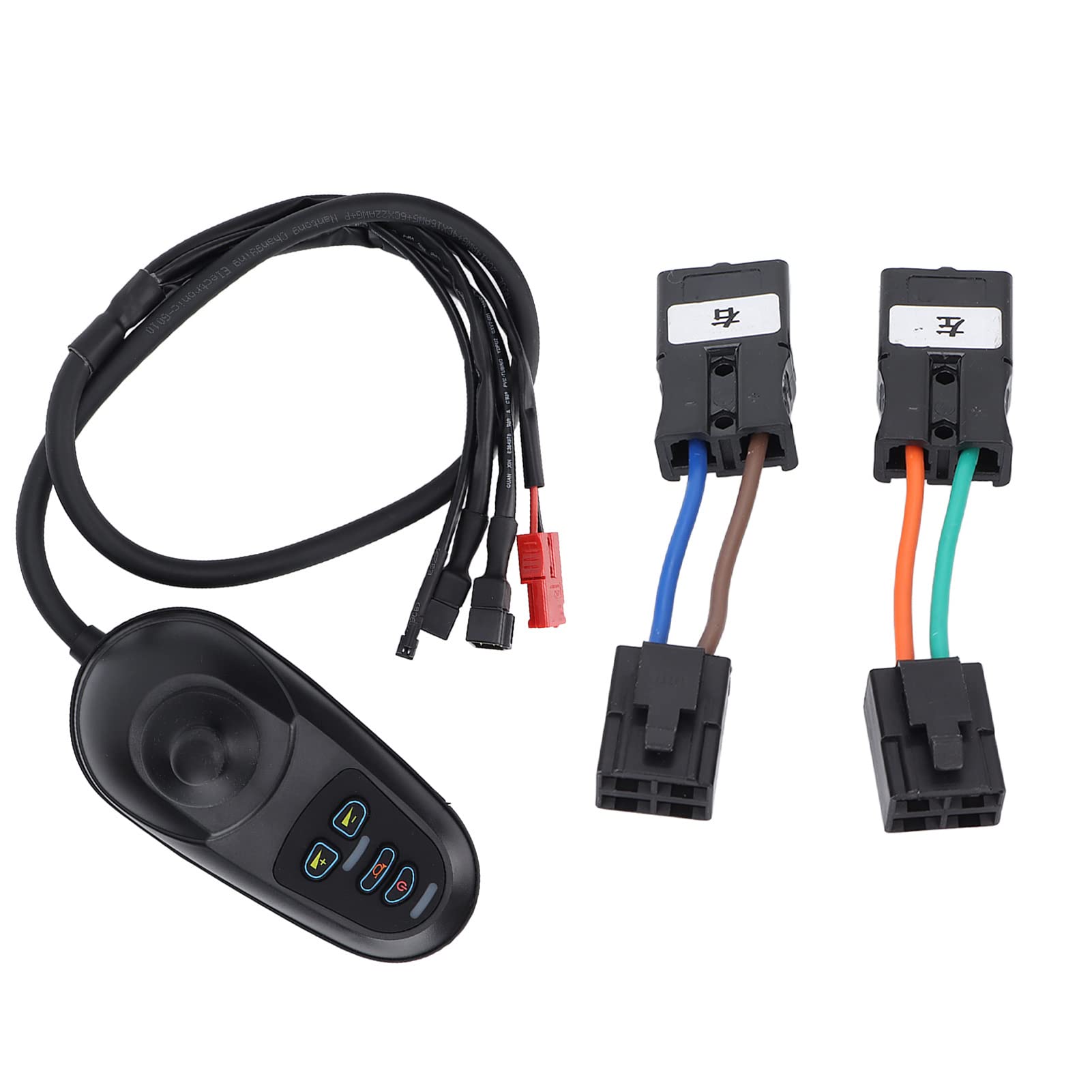

Waterproof Electric Wheelchair Joystick - High Sensitivity Controller for Mobility & Gaming

Product Description

Specification:Item Type: Electric wheel chair controllerMaterial: ABSBrake Voltage: DC 24V Brake Current: 300-3000mACharging Current: Maximum 6A Waterproof Grade: IPX5 Electronic EquipmentOperating Temperature: -25°C - +60°CStorage Temperature: -40℃ - +80°Applicable Driving Motor Type: 24V DC brush motorApplication: Electric wheelchair, intelligent robot, amusement equipment, music bar car, monitoring and the operating platform of various mobile products.How to Use:1. Power on /off: press this key to turn on the power supply, turn on the battery power indicator, and the controller system enters the startup program. Press this key again to turn off the power supply. Press it for more than 0.5 seconds to prevent misoperation. 2. Deceleration key: reduce the maximum speed of driving. Press once to reduce the speed by one gear, and the speed it displayed as the current speed gear. 3. Acceleration key: increase the maximum speed of driving. Press once to increase the speed by one gear, and the speed it displayed as the current speed gear. 4. Control lever: control the speed and direction of travel and parking. the pushing direction of the control lever is consistent with the direction of travel. The operation will stop when the control lever is released naturally(placed in the middle position).5. Horn key: Horn honking / buzzer honking.Package List:1 x Controller 2 x Connector 1 x InstructionNote:In order to avoid affecting the use of the product, the product should be careful not to perform too many transfers, which are prone to poor contact.
