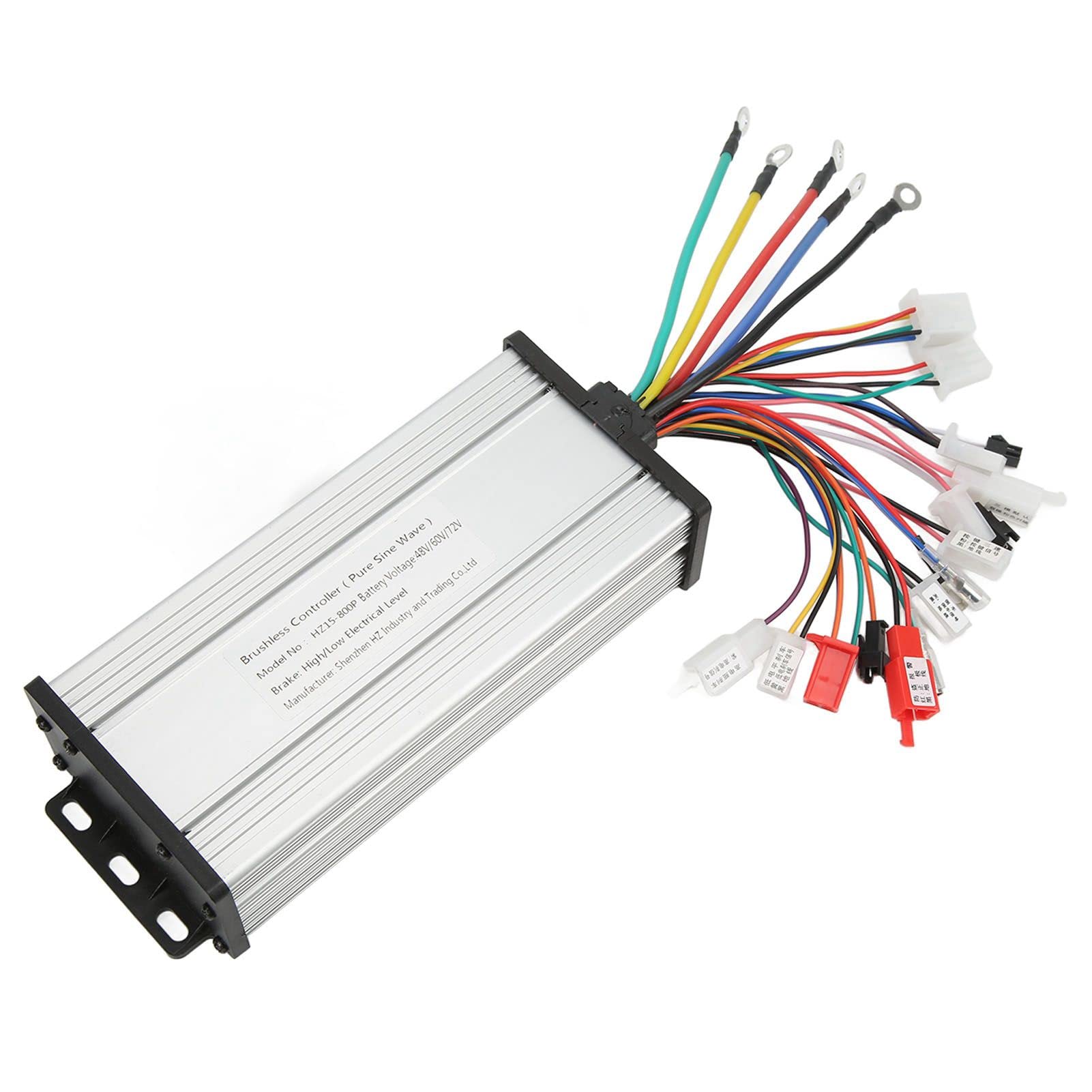

48V-72V 800W Brushless Motor Controller for E-Bike & Scooter - Heat Dissipation

Product Description

Specification: Item Type: Electric Vehicle 48V 60V 72V 800W Sine Wave Controller Product Material: Aluminum Alloy Color: As Pictures Shown Weight: Approx. 628g / 22.2oz Voltage: 48V, 60V, 72V Power: 800W Current Limit: 30±1A Phase Angle: 60°, 120° Turning Voltage: 1.1-4.2V Undervoltage: Automatic 1 electric door lock line 2 positive and negative poles lines of the power supply 3 motor phase wires 1 anti theft alarm wire (red: positive, black: ground) 1 anti theft alarm line (orange: anti theft electric door lock, blue: anti theft signal, green: sensitivity line) 2 Three mode default pink line 1 high battery brake line (purple: high electric brake signal) 1 low battery brake line (yellow: level brake, black: ground wire) 1 button three speed cable (pink: button signal, black: ground) 1 reversing line (gray: reversing signal black: 1 ground wire) 1 motor hall line (red: 5V positive, black: ground, yellow: green and blue hall) 1 gear shift line (blue: low speed signal, brown: high speed signal, black: ground wire) White line black head: 2 learning line Orange line black head: 1 cruise line Green wire transparent head: 1 meter wire Blue and white line transparent head: 1 LCD instrument line 1 low battery brake cable (black: bottom wire, yellow: low battery brake signal) Three wire handle (red: 5V positive, green: signal wire, black: ground wire) Cruise line (1 white line black head + 1 orange line black head) Pink line white head (dual mode three mode switching line) Package List: 1 x Controller
