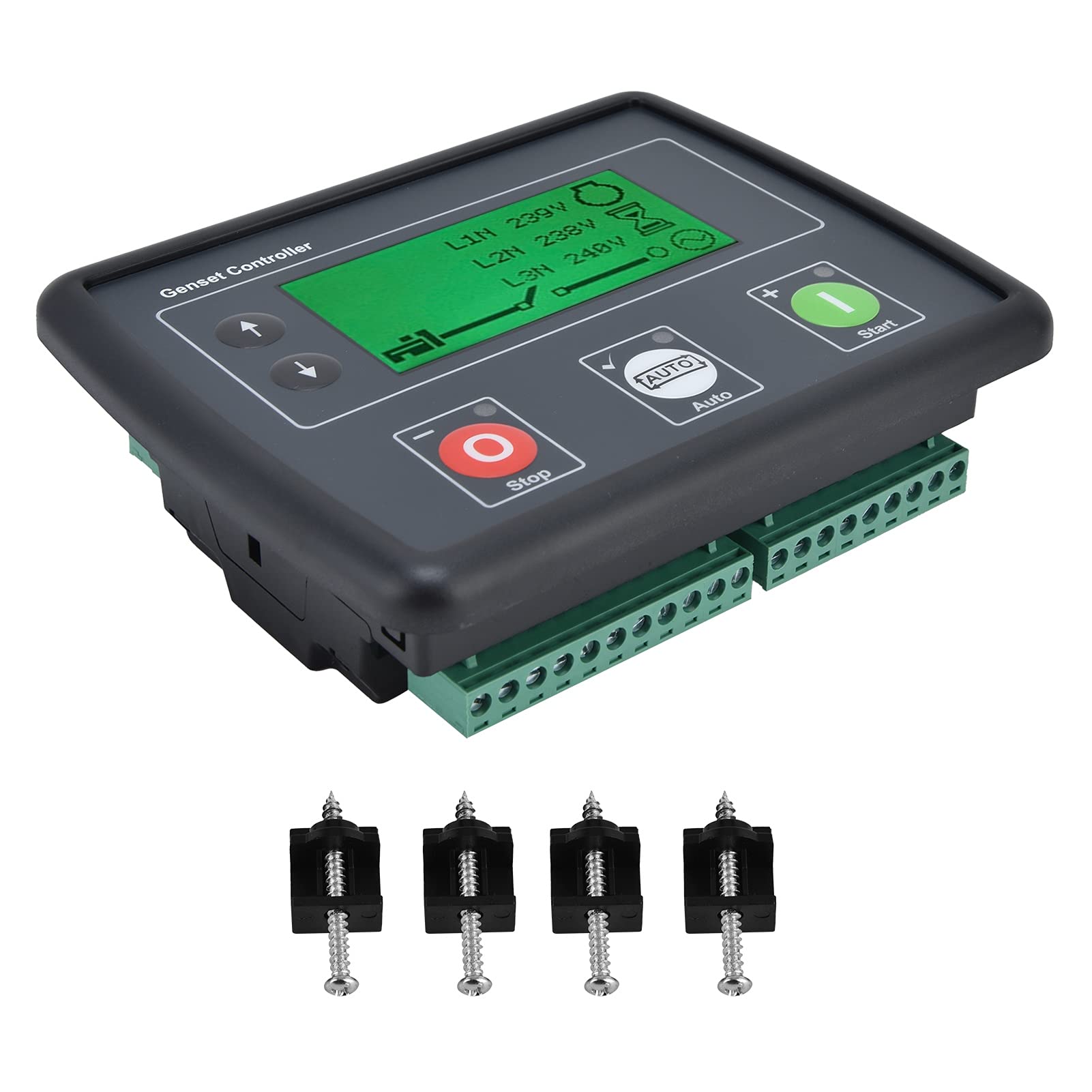

Firman 3-Phase Generator Control Panel - Engine Speed Controller for Generator Sets | Perfect for Home Backup Power, Construction Sites & Emergency Use

Product Description

Feature:1. DSE4510 is a stand‑alone self‑starting controller, which can provide complete monitoring and protection functions for generator sets.2. The LCD display can display alarm information such as ordinary alarms, electrical trips and shutdowns, and supports diesel, gas and gasoline EFI and non‑EFI.3. Can monitor engine speed, oil pressure, water temperature, oil level, and generator frequency, voltage, current power.4. With multiple flexible input, output and protection functions, suitable for a variety of application requirements.5. The parameters can be set through the DSE software, or the parameters can be edited on the front panel.Specification:Item Type: Generator Set ControllerFunctions: Self-definable self-starting mains failure self-starting mode; support J1939-75 and shield CAN alarm; generator frequency and CAN detection speed; the largest backlit graphic display among similar products; real-time clock; can be set through the front panel or computer All parameters; power saving mode; 3-phase generator detection; 3-phase mains detection; support for 600 V line voltage (LL system); unit/load force monitoring (KW, KVA, KVAr, pf); cumulative power monitoring (KWh, KVAh, KVArh); overload protection; unit/load current detection and protection; fuel and start output can be customized when connected to EFI; 4 custom DC outputs; 3 custom analog/digital inputs; 4 custom inputs Defined digital input; self-defined hierarchical load output; 3 engine maintenance indications; engine speed protection; engine running time timer; engine warm-up; engine start and stop cycles can be preset; engine start idling and shutdown idling control; Tier4 standard Engine instrument interface; battery voltage monitoring; start the unit when the battery voltage is low; custom remote start input; 2 sets of protection parameters
