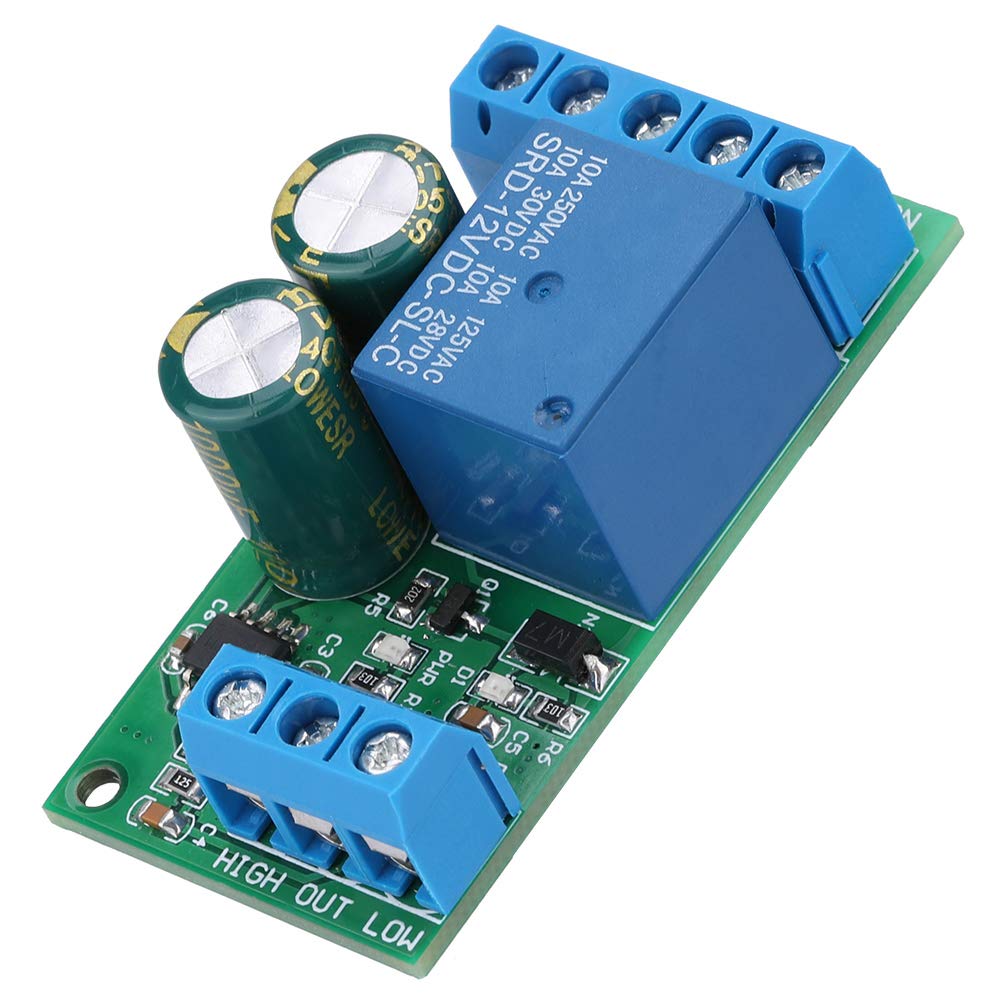

Compact Level Controller Switch for Aquarium & Fish Tank - Farm Use

Product Description

Features: Strong compatibility, can be used in conjunction with a variety of liquid level sensor Strong protection, with pump idling protection and water level overflow detection output. Relay dry node output, can be applied to a variety of load control Control of diversification, manual or automatic mode control of water pump The installation is simple and convenient, the screw can be positioned and installed, and the electric box track can also be installed. Specification:Model: LC25A01Weight: 28g/1ozWorking voltage: DC 12-15V(AC 9-12V)Standby current 10MAWorking current 40MAMaximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDCSize: 54*27*19mm/2.1*1.1*0.7inchApplication:Home water tower automatic water supply system.Aquarium fish tank water changer system.Conductive liquid automatic control.Automatic feeding system for poultry and livestock.Farm automatic water supply system.And other occasions that require automatic water supply and water exchange.Solenoid vae water pump motor automatic control.Interface description:HIGH : Upper limit probeOUT : Output probeLOW : Lower limit probeIN+ : Power terminal 1 (regardless of positive and negative)IN- : Power terminal 2 (regardless of positive and negative)NC: Relay normally closed contactCOM: Relay common contactNO: Relay normally open contactPackage List:1 x Level Controller ModuleNote: 1. Package does not contain probe (wire).No need to use a dedicated probe, the probe can be made using household wires2. For safety, use an AC/DC power supply with good isolation.
