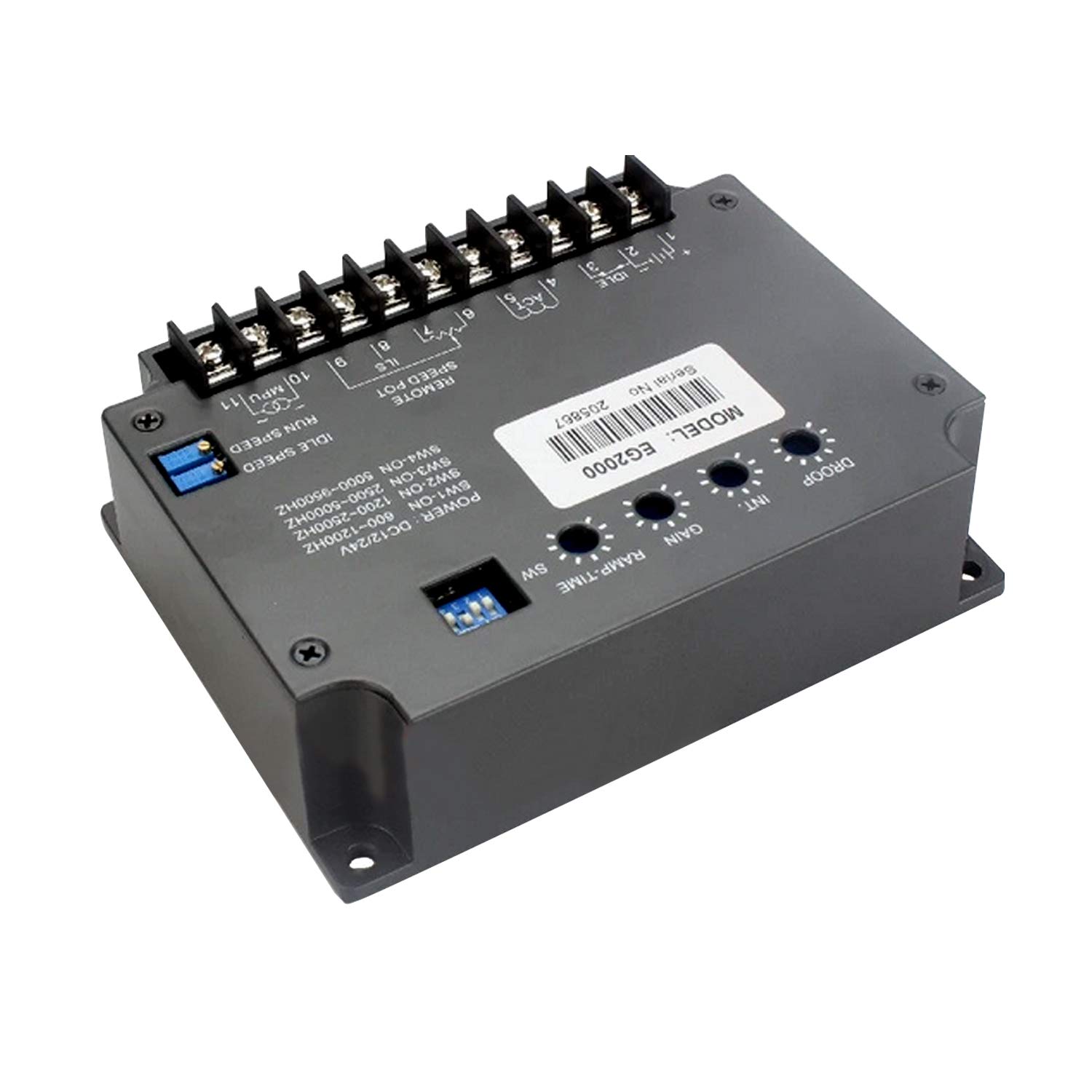

EG2000 Engine Speed Governor for Gasoline Generators - Power Control Panel

Product Description

Part Number: EG2000Features:Works on a wide ranges of MPU/flywheel frequencies15 Amp Max outputSuitable for all types of diesel and gas enginesHigh sensitivity and stable at low frequency variations Moisture, vibration, and rust protected, epoxy encapsulated electronicsFor use with isochronous generators & automatic paralleling PLC controlsIdle speed adjustment and connections for a remote speed POTSpecifications:Operating Voltage: DC 10V-30VOutput Current: 0.5A-15AFrequency Range: 600-9500 Hz (MPU signal)Idle Speed Frequency: Adjustable from 30-85% of normalSpeed Band: +/- 0.25% at steady stateTemp. Stability: Between -40~+85 better than +/- 0.5%Remote Speed Adjustment Range (2 mode): Adjustable range +/- 5% with 5KÎ potentiometerRamp Time: 3~20 sec. (Adjustable)Operation Environment: Operation Temperature : -40~+85Storage Temperature : -40~+85Relative Humidity : Max. 95-Vibration : 3Gs 100-2K HzDIP Switch Description:SW1 : ON 600-1200 HzSW2 : ON 1200-2500 HzSW3 : ON 2500-5000 HzSW4 : ON 5000-9500 HzGovernor Controls:DROOP : Droop Rate AdjustmentGAIN : ACT Output Gain AdjustmentINT. : Engine Stability AdjustmentRAMP-TIME : Soft Start AdjustmentSPEED : Speed AdjustmentIDLE : Idle Speed AdjustmentDimension: 147 x 114 x 40mmWeight: 690g
