Smart Thermostat Controller Kit for Home & Outdoor Temperature Control

Product Description

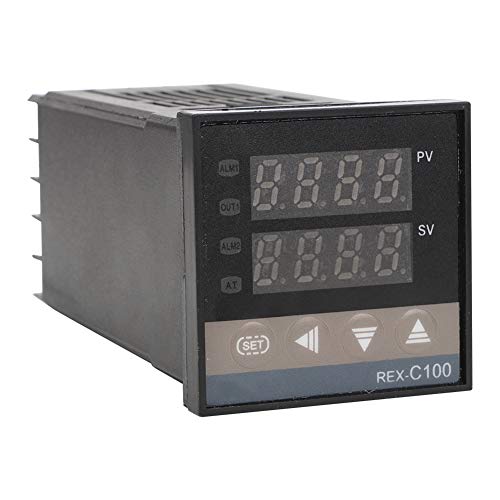

Specification:REX-C100 Temperature Controller KitCondition: Brand New and High QualityMeasuring accuracy: ±0.5%FSCold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃）Resolution: 14 bitSampling cycle: 0.5 Secpower supply: AC100-240VProcess value (PV), Setting value (SV)Output and self-tuning can be indicated by: LEDPIN control (including ON/OFF, step-type PID and continuous PID)Self-tuning controlRelay output: contact capacity 250V AC 3A (resistive load)Contact capacity of output: 250V AC 3A (resistive load)Setting value (SV): identical to measuring range (PV)Proportional band (P): 0~full range (ON/OFF control when set to 0)Integral time (I): 0~3600 sec (No integral action when set to 0)Derivative time (D): 0~3600 sec (No derivative action when set to 0)Heat-reset proportional cycle: 1~100 secDetective temperature range: 0 to 400℃Insulation resistance: >500M ohm(500V DC)Insulation resistance: 1500V AC/minPower Consumption: 10 VAService environment: 0~50℃environment with no corrosive gas 30~85% RHK Thermocouple Probe CableLength: 1M Sensor diameter: 4.5mm Temperature rang: 0-400℃ Internal Insulation: Fiberglass External Shielding: Insulated ShieldingMax.40A SSROutput Voltage Range: Standard Type Output Current: 40A Input Voltage: DC 3-32V Output Voltage: 24-380VACPackage Include:1 x PID Temperature Controller1 x K Type Probe Sensor1 x Max. 40A SSR
