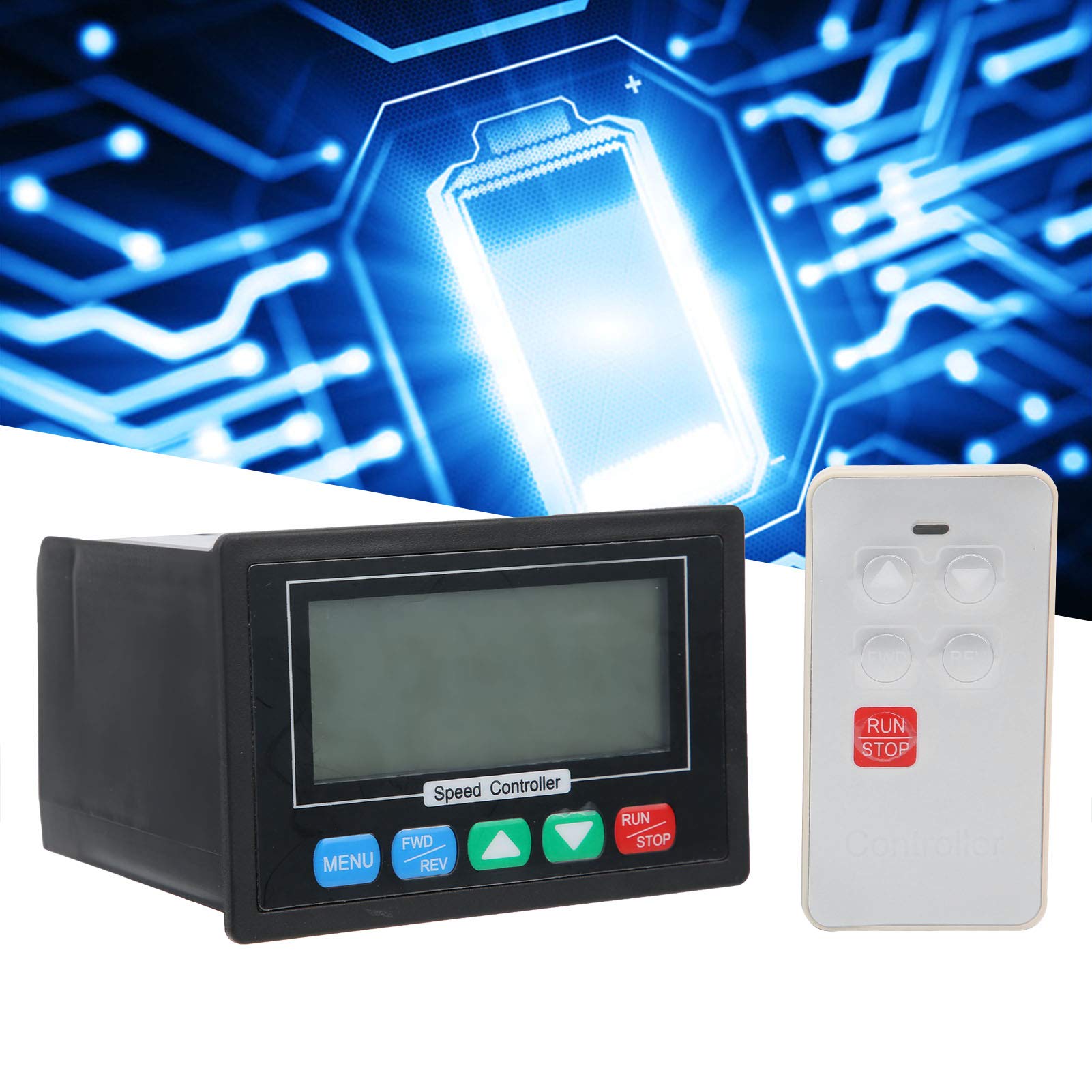

PWM Fan Controller for Brush Motor - Remote Speed Control for DIY Mods

Product Description

Feature:1. Equipped with wireless remote control, multiple limit modes are optional, and slow start and slow stop time can be set.2. The upper limit of the speed and the lower limit of the speed can be set, and the total working time can be set.3. Intelligent LCD screen with backlight, can display working time, speed percentage, current mode, etc.4. Support two‑speed control CW speed and CCW speed separate speed regulation.5. There are 2 modes of manual and automatic are optional.Auto mode is full automatic CW and CCW within the set time.Specification:Item Type: Motor Speed Controller Product Model: T-70SMaterial Quality: ABS materialInput Voltage: DC10-55V (the specific voltage is equal to the rated voltage of the motor)Output Voltage: Linear under loadInstantaneous Current: 50AContinuous Current: Within 30AForward And Reverse: SupportWireless Remote Control: YesTimed Out: YesLimit Function: YesSlow Start And Slow Letter: ConfigurableSpeed Digital Display: 0-100 percentage meterSpeed Regulation Type: regulationSpeed Regulation Mode: Jog+Speed Range: 0-100% Control Frequency: 15KHZWiring Type: Shed type terminal blockSupport Motor: Brush motorModule Size: Length x Height x Depth: Approx. 105 x 70 x 95mm / 4.1 x 2.8 x 3.7inProduct Net Weight: Approx. 275 g / 9.7 ozPanel Opening: Length x Width: Approx. 98 x 63mm / 3.9 x 2.5inInstallation Method: EmbeddedCommodity: Remote control battery(without)Model Number: CR2032Type: Button batteryProduct Specifications: 5 pcs/cardRated Voltage: 3VProduct Size: Approx. 20 x 3.2mm / 0.8 x 0.1in (width/thickness)Capacity: About 225mAhPackage List:1 x Motor Speed Controller1 x Remote ControlNote:The input must be divide
