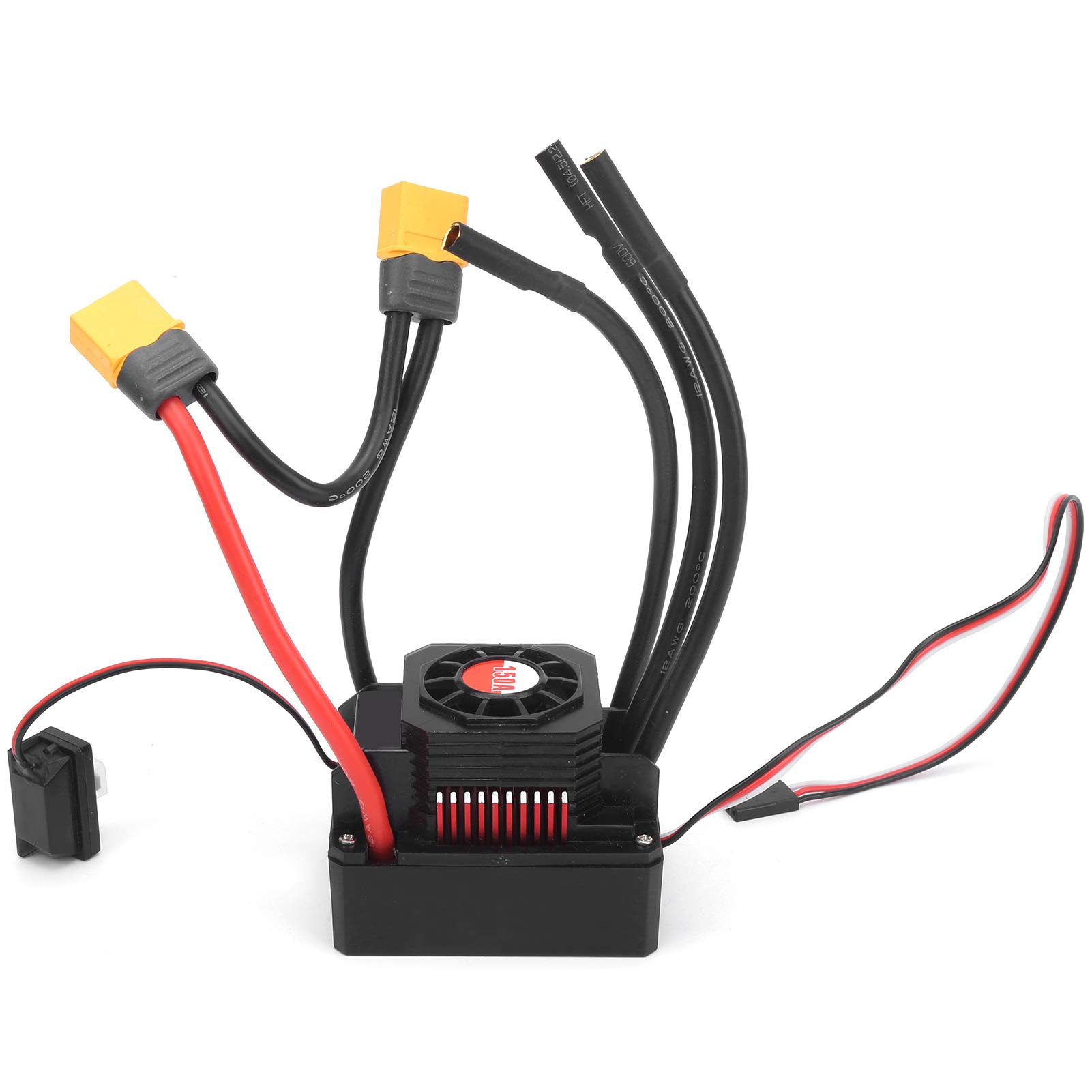

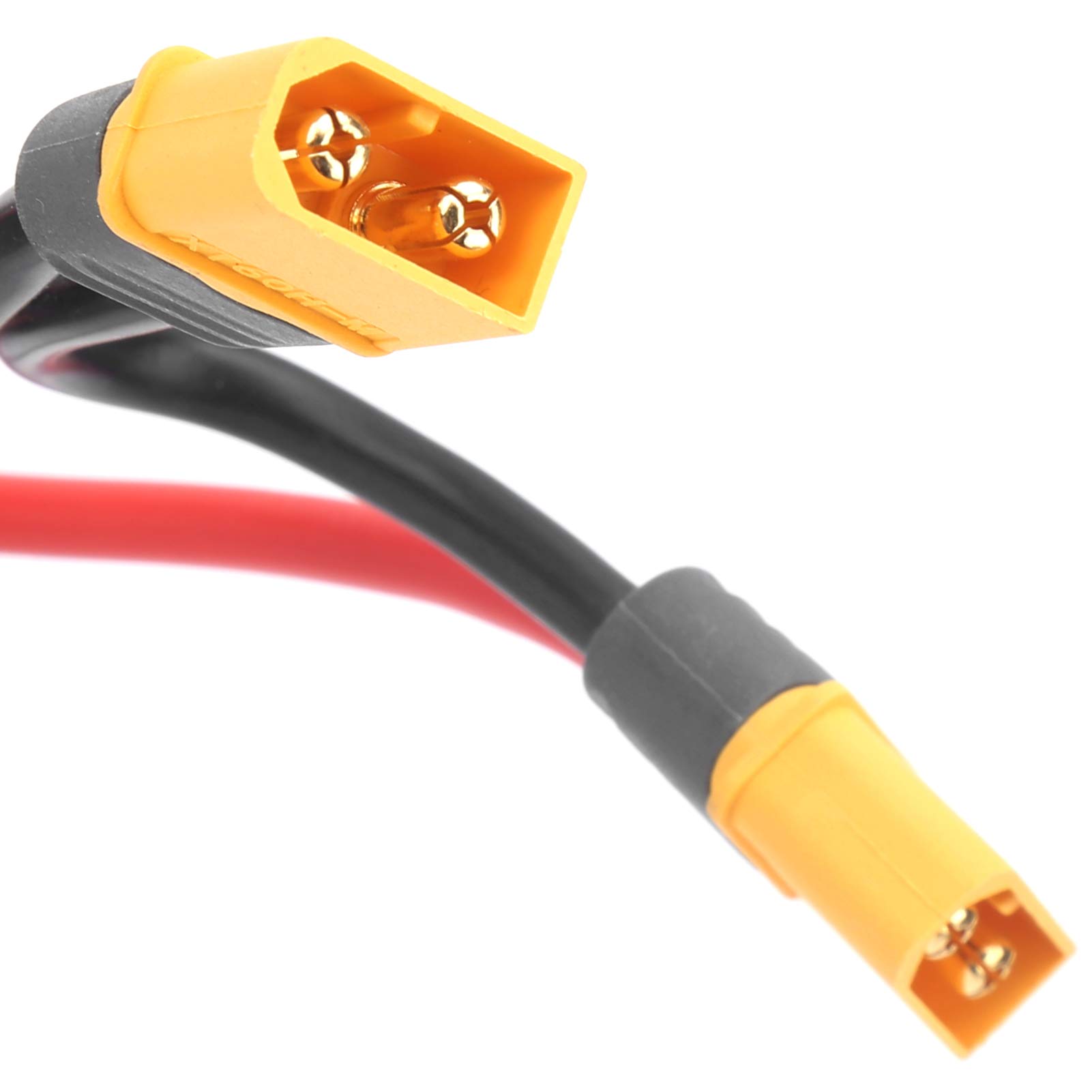

Electric Speed Controller, Sensorless and Brushless Motor 150A Waterproof ESC with XT60 Plug 1/10 1/8 RC ESC RC Accessory Troubleshooting 1 . If after power on , motor can , t work , no sound is emittedplease check the connections between battery pack and motor . 2 . If after power on , LED flashes , please check the voltage of battery pack , which should be from 5V-25.5V 3 . If the motor emits a " beep-beep " tone Only ( BEC voltage 6.1V ) or If the motor emits a " beep-beep " twice ( BEC voltage 7.3V ) , please check all the connections : BEC wires , transmitter andreceiver , throttle signal wires , etc . please check the transmitter TH . TRIM and adjust it to the motor re-emits Beep-beep tone 4 . If the car can't be speed up , please check either voltage of the battery pack is too low or the temperature of ESC is too high . If the voltage of the battery pack is too low , please replace the battery pack . If the temperature of ESC is too high , please check all connections . If not , please push the button EPA on your remote control 5 . If the car stops suddenly while in working state , please check the motor's connections , and the road 6 . If the car runs in the opposite direction , which the transmitter is available , please swap two wire connections between the ESC and the motor Plastic+Alloy material, which is waterproof and dustproof, durable for has a long service life, 150A electric speed controller with XT60 plug, specially designed for remote control car with excellent starting, acceleration and linear characteristics. 150A BEC voltage change: turn off ESC, connect the short circuit chip to bec, turn on ESC, and the motor will emit "beep". After 2 seconds, pull out the short circuit chip to the BEC. When the change of BEC voltage is completed, the motor beeps - "beep" (if be (the voltage is 6.1v, the motor beeps). If be (7.3v motor beeps twice), turn off BEC voltage change. 0.00030ohm; Bec Output: 6.1V or 7.4V/3A (Switch Mode), and it has multiple protection functions, battery lowvoltage cutoff protection, overheating signal loss protection, motor stall protection, powerful current resistance, excellent heat dissipation, easy to program and compatible with pocket programming cards. 3-6 Cells Lipo / 9-18 Cells NIMH: For lipo 4S or 12 nimh cells: 1. On-road: 40xx size or smaller engine, easy to install and use, and pleast note that before using this ESC in water, please remove the cooling fan; clean and dry it immediately after use Package List 1 x Electric Speed Controller 1 x Manual Note 1. Manual measurement, please allow 1‑3mm/0.04‑0.12in error, thank you. 2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. 3. Before using this ESC in water, please remove the cooling fan; clean and dry it immediately after use to prevent the connector from rusting. Specification Material: Plastic+Alloy Color: Red Black Size: Approx. 60x45x45mm/2.4x1.8x1.8in Weight: Approx. 200.0g/7.1oz Continuous Current: 150A Maximum Current: 720A Motor Type: Sensorless and Brushless Motor Battery: 3-6 Cells Lipo Bec Output: 6.1V or 7.4V/3A (Switch Mode) Fit for 1/10 1/8 RC Cars Instuction 1. Connect BEC wires with the receive 2. Connect motor wires with ESC 3. Turn on the transmitter 4. Connect battery pack with ESC then switch on the ESC 5. When the connection of motor and battery is finished, the motor emits"beep-beep tone. 6. When the throttle stick is In the neutral position, the motor re-emits"beep-beep tone 7. The ESC is workable

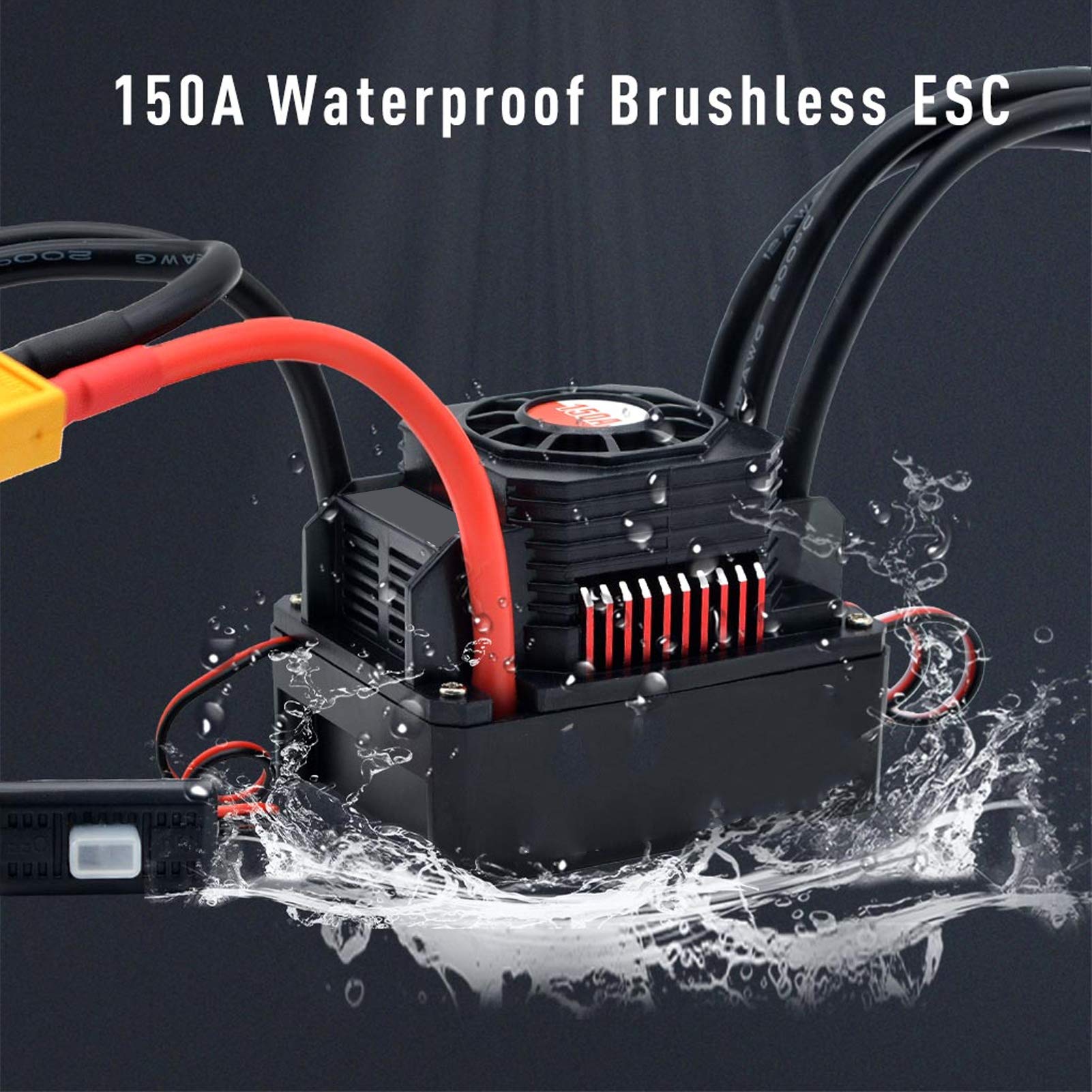

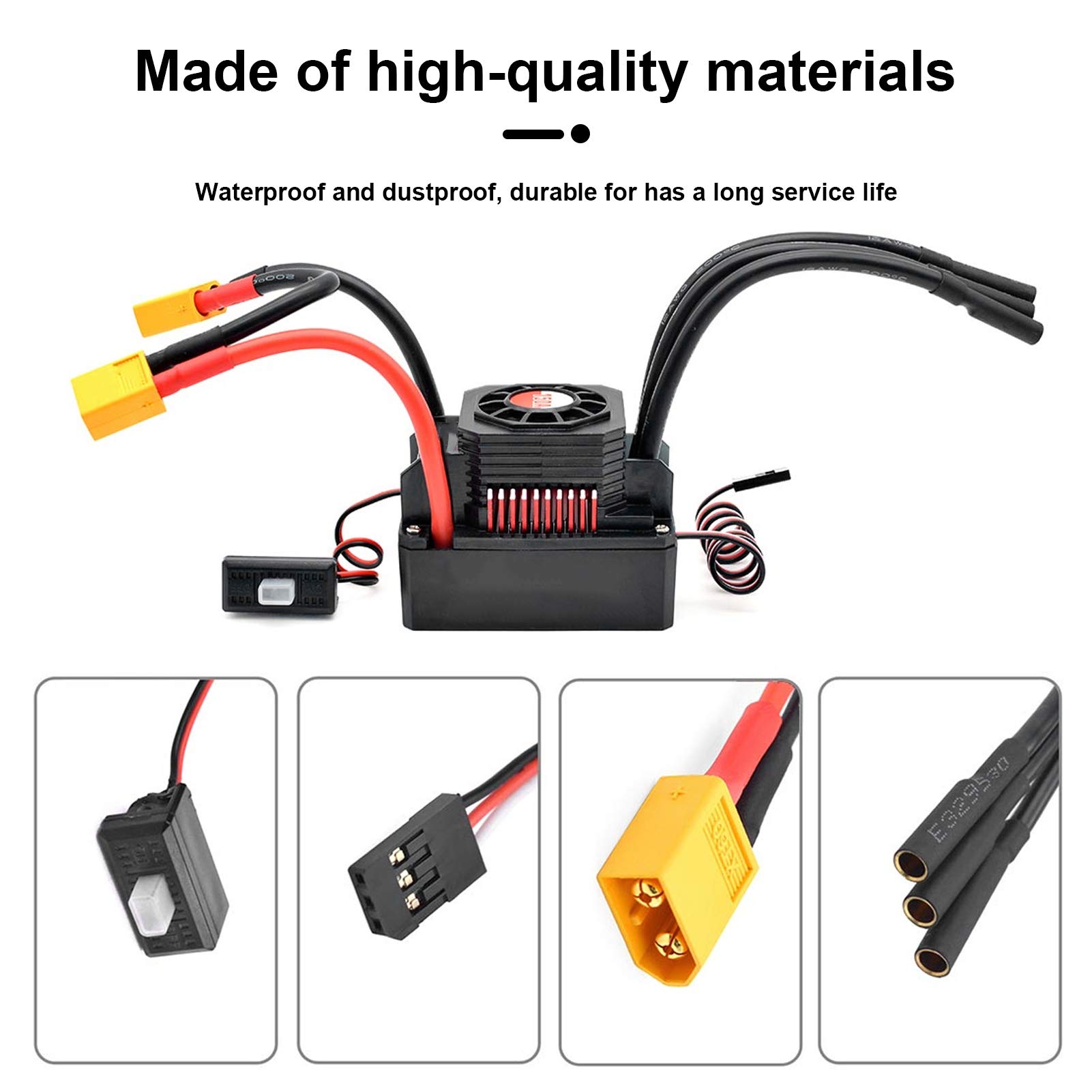

High quality Plastic+Alloy material, which is and dustproof, for has a long service life, 150A electric speed controller with plug, specially designed for remote control car with excellent starting, acceleration and linear characteristics.
0.00030ohm; Bec Output 6.1V or 7.4V/3A (Switch Mode), and it has multiple functions, battery lowvoltage cutoff , overheating loss , motor stall , powerful current , excellent heat dissipation, easy to program and compatible with pocket programming cards.
Battery 3-6 Cells Lipo / 9-18 Cells NIMH For lipo 4S or 12 nimh cells 1. On-road 40xx size or smaller engine,

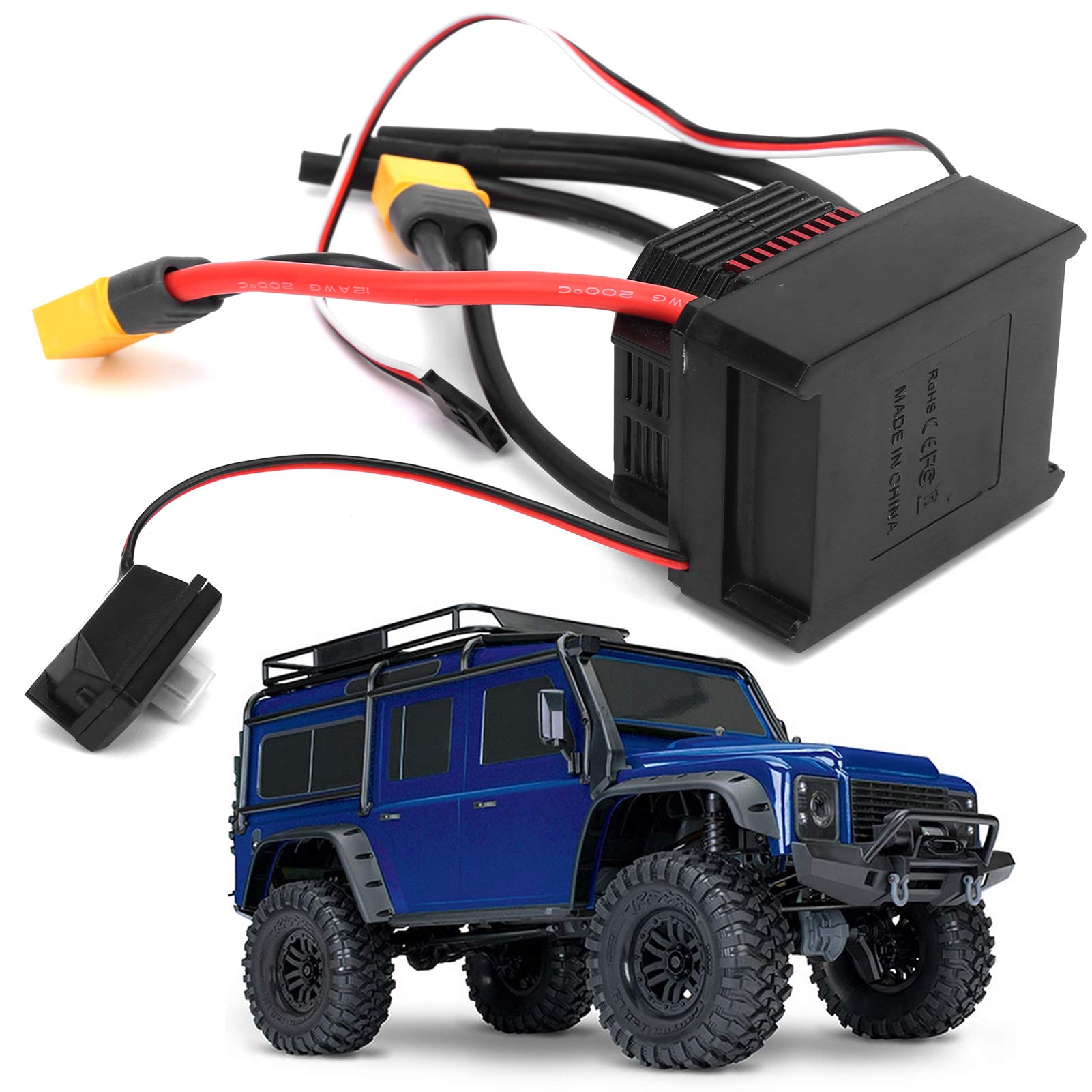

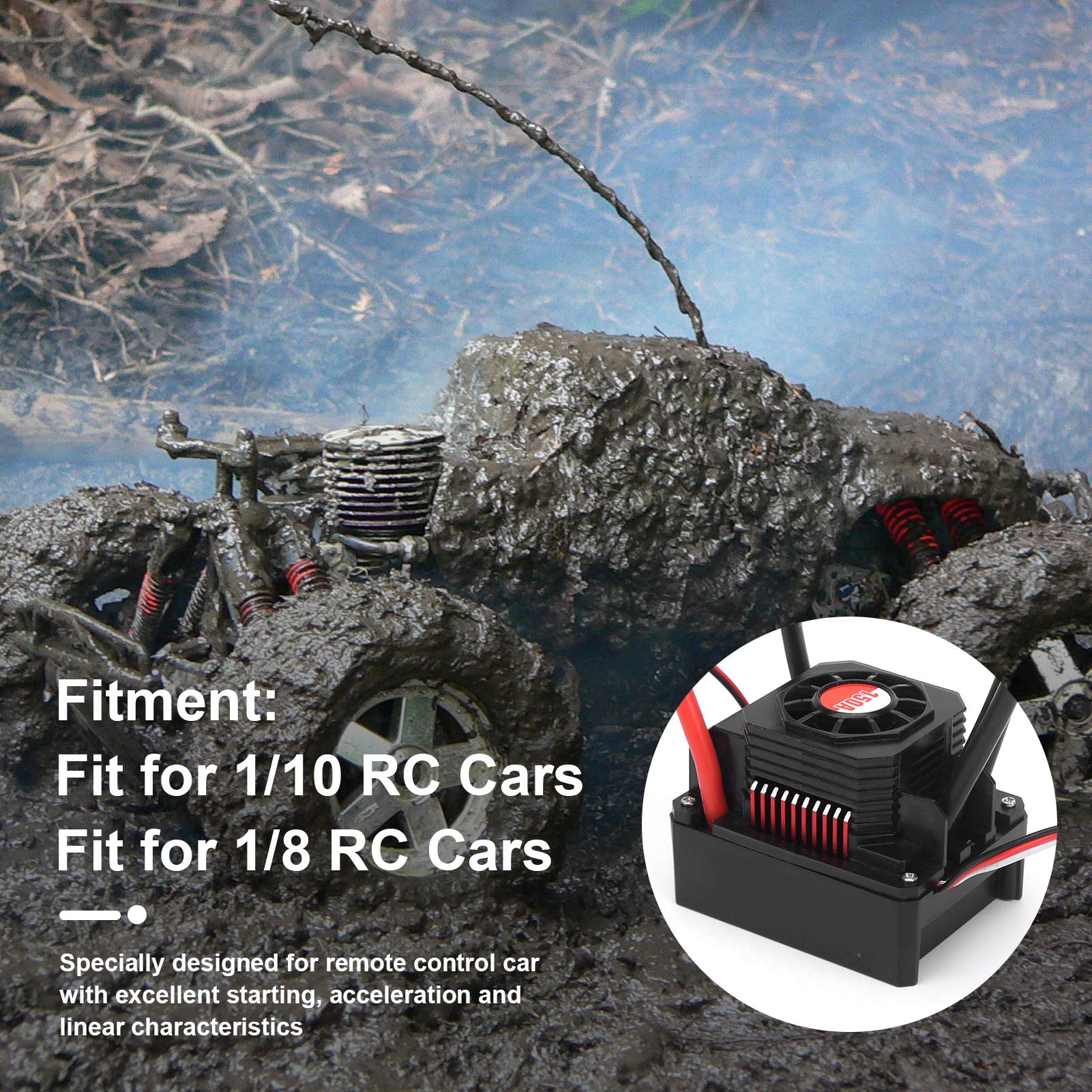

Package list The package list include that 1 x Electric Speed Controller; 1 x Manual, easy to install and use, and pleast note that before using this ESC in water, please remove the cooling fan; clean and dry it immediately after use to prevent the connector from rusting. And which is fit for 1/8 1/10 RC cars.
Instuction 150A BEC voltage change turn off ESC, connect the short circuit chip to bec, turn on ESC, and the motor will emit "beep". After 2 seconds, pull out the short circuit chip to the BEC. When the change of BEC voltage is completed, the motor beeps - "beep" (if be (the voltage is 6.1v, the motor beeps). If be (7.3v motor beeps twice), turn off BEC voltage change.
