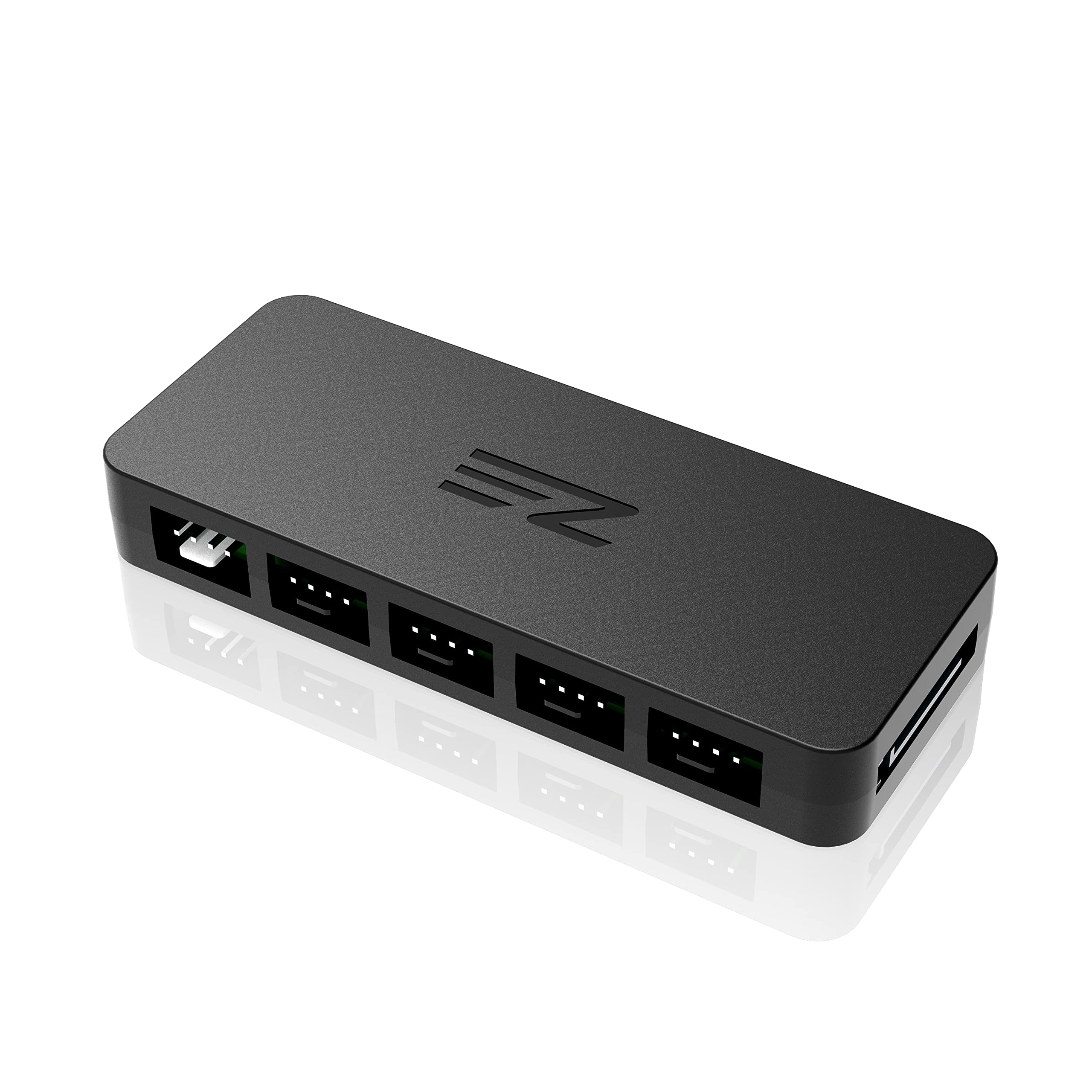

About this item Power up to 10 PC fans from a Single 4-Pin Motherboard PWM Fan Header.Note: Max current limit is 3A in total, check the spec of fan first. In the hub interfaces, the White interface of FAN1 is the CPU fan dedicated interface (with speed detection function). Since the mainboard can only receive one rotation speed signal, the remaining nine conventional fan interfaces have the PWM function, but no speed signal. There is EVA double-sided adhesive in the package, which can be easily affixed to a flat place. Also a fixing screw hole in the middle of the PCB to facilitate fixing to a part of the chassis. Direct computer power supply to reduce the mainboard loading pressure, and PWM temperature control line separated from mainboard to achieve both of power supply and temperature control. If 3-pin fans are connected to this fan hub, this fan hub CANNOT give them extra PWM function. They will run at FULL SPEED. › See more product details
Power up to 10 PC fans from a Single 4-Pin Motherboard PWM Fan Header.Note Max current limit is 3A in total, check the spec of fan first.

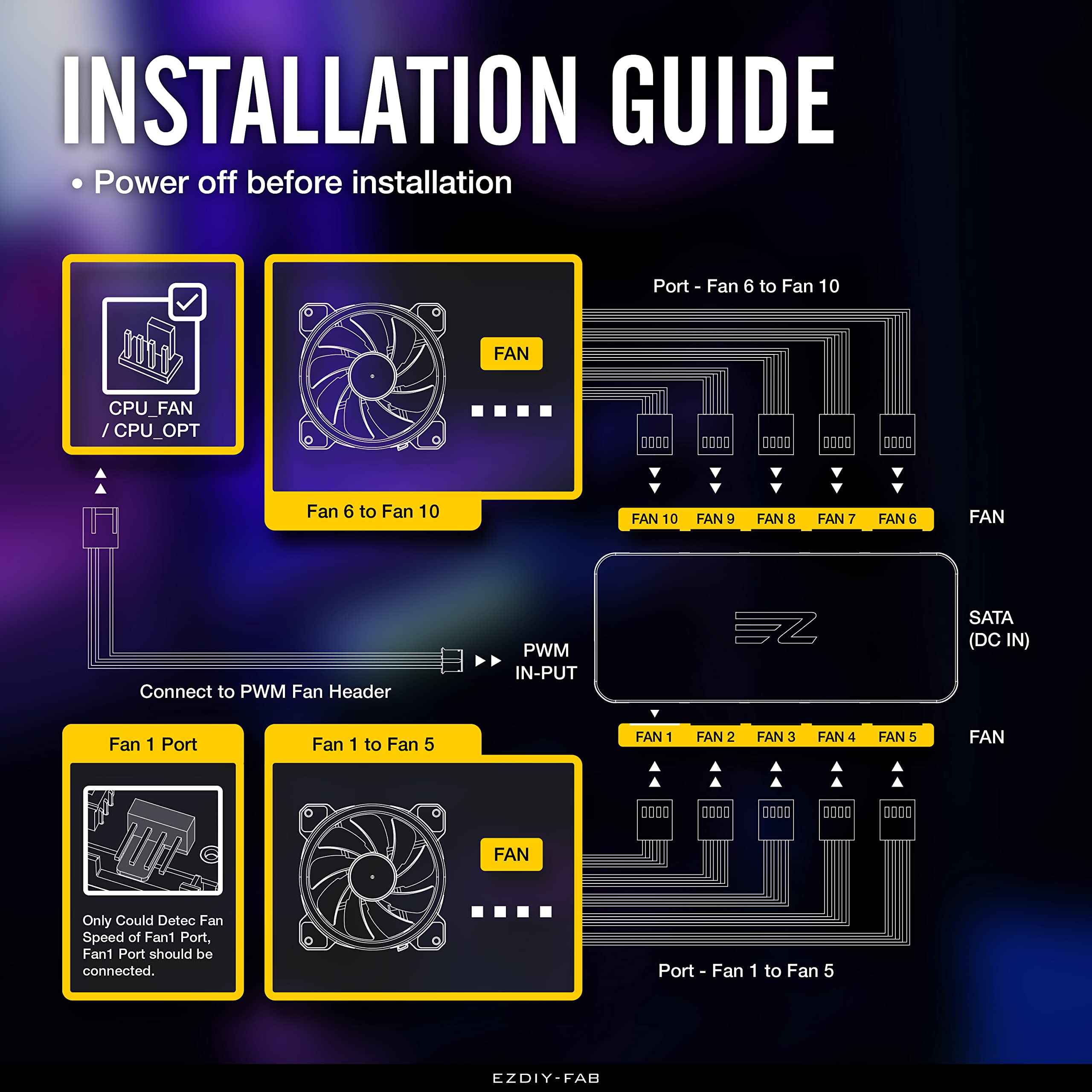

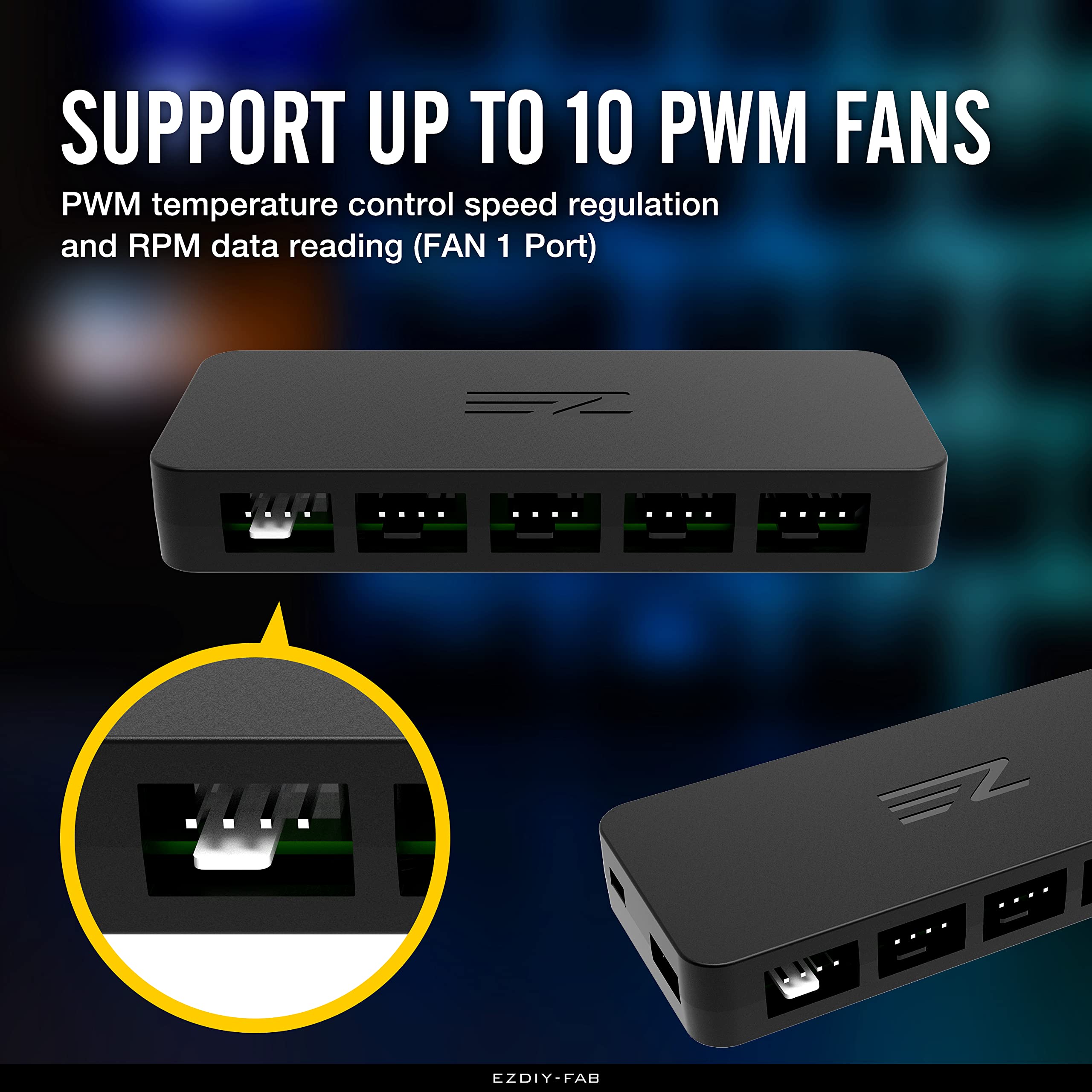

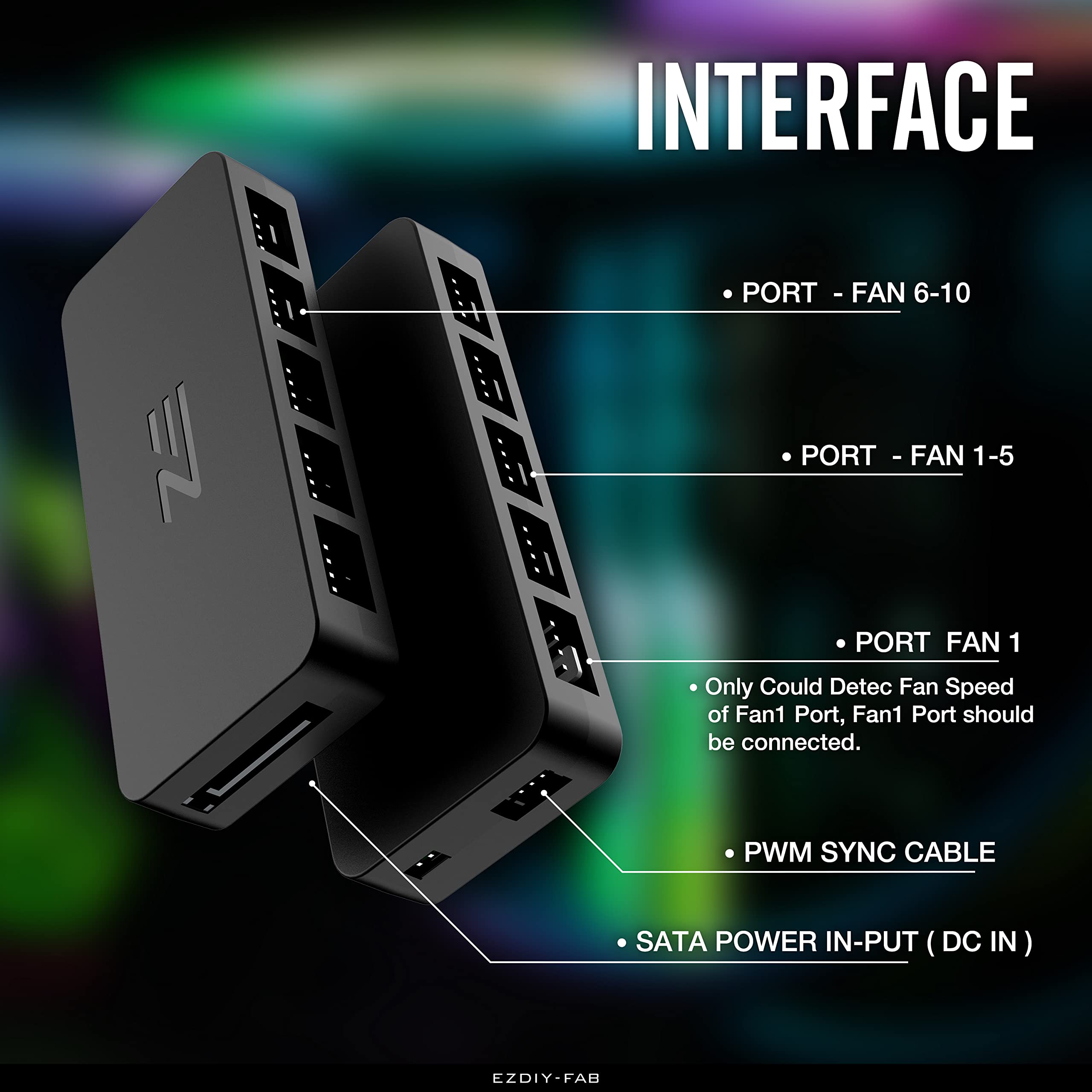

In the hub interfaces, the White interface of FAN1 is the CPU fan dedicated interface (with speed detection function). Since the mainboard can only receive one rotation speed signal, the remaining nine conventional fan interfaces have the PWM function, but no speed signal.

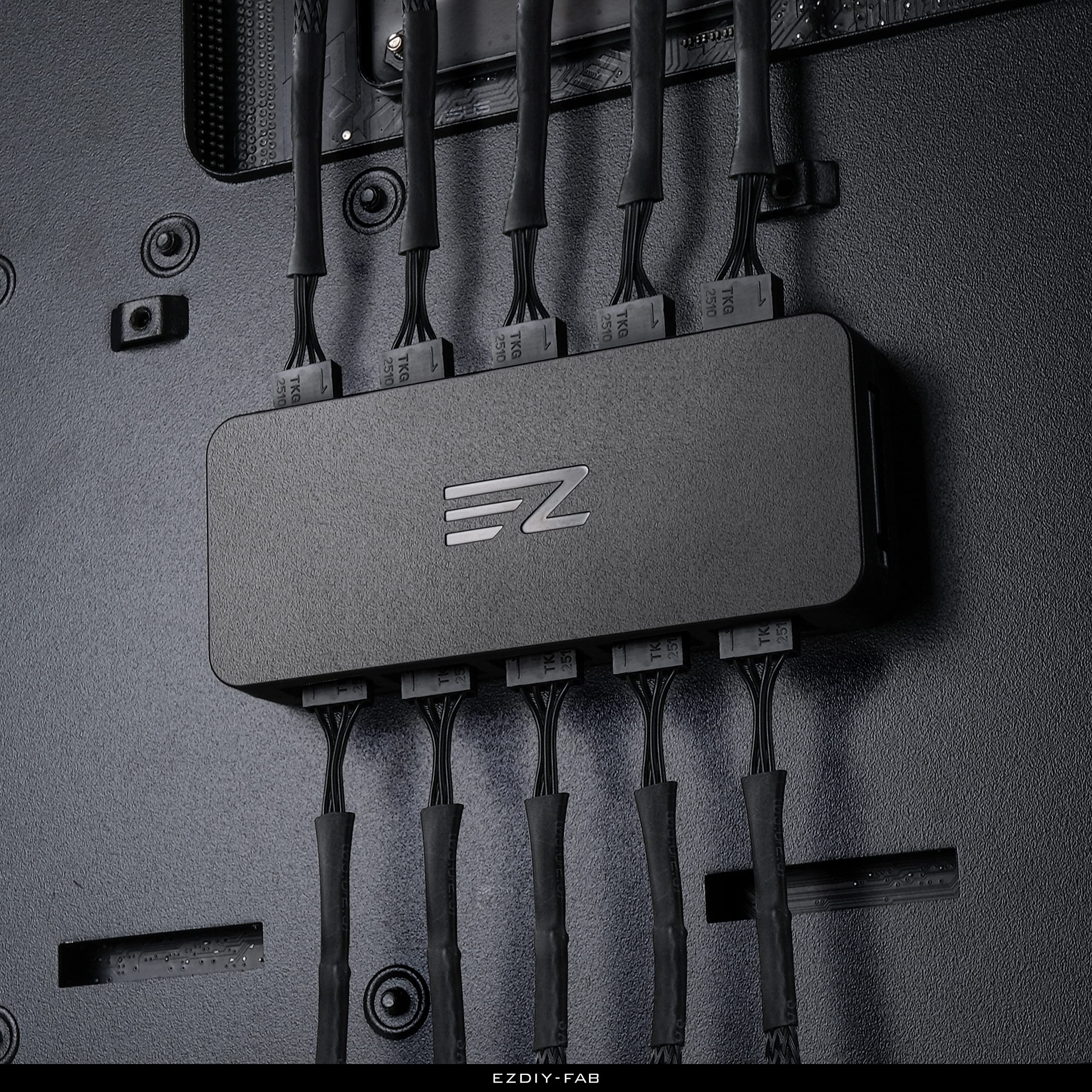

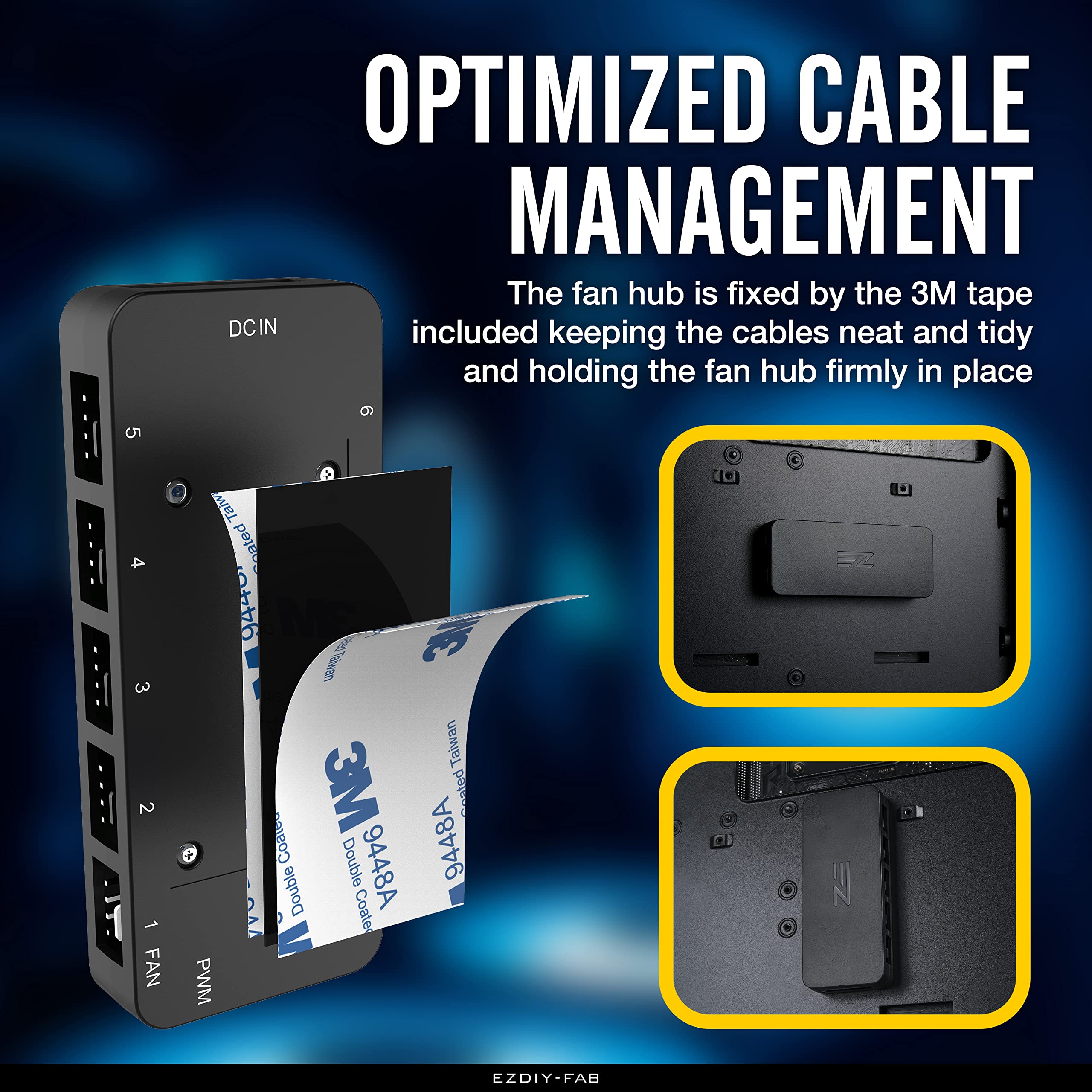

There is EVA double-sided adhesive in the package, which can be easily affixed to a flat place. Also a fixing screw hole in the middle of the PCB to facilitate fixing to a part of the chassis.
Direct computer power supply to reduce the mainboard loading pressure, and PWM temperature control line separated from mainboard to achieve both of power supply and temperature control.
If 3-pin fans are connected to this fan hub, this fan hub CANNOT give them extra PWM function. They will run at FULL SPEED.
I have many fans in my PC case. So nice to have different hubs so the different fans can be set at different RPM graphs. Also nice to have fans that are the same hooked to a different hub. This always me to get every last RPM out of every fan. Great price and works great. Recommend.
