SKU:38790906

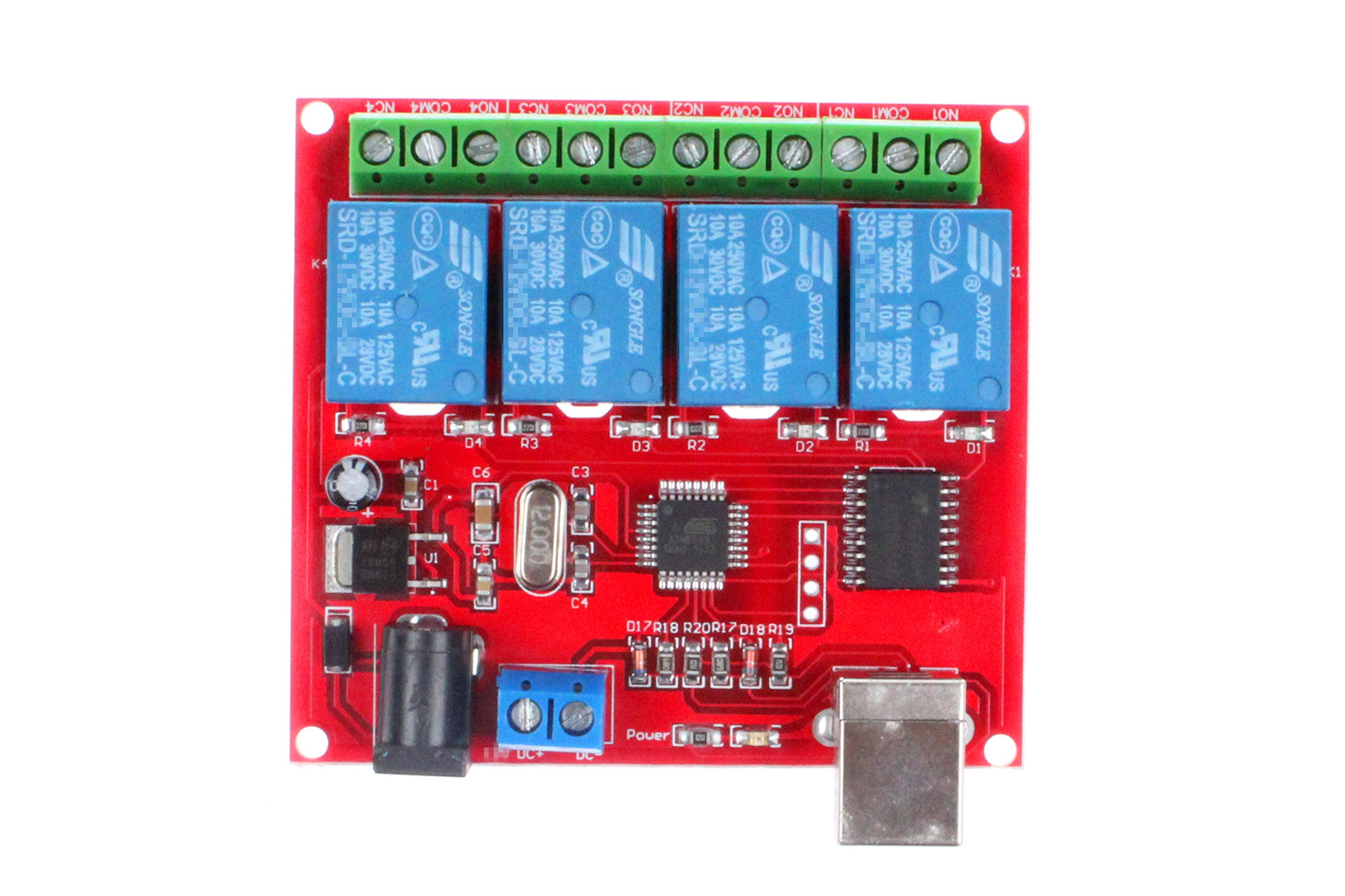

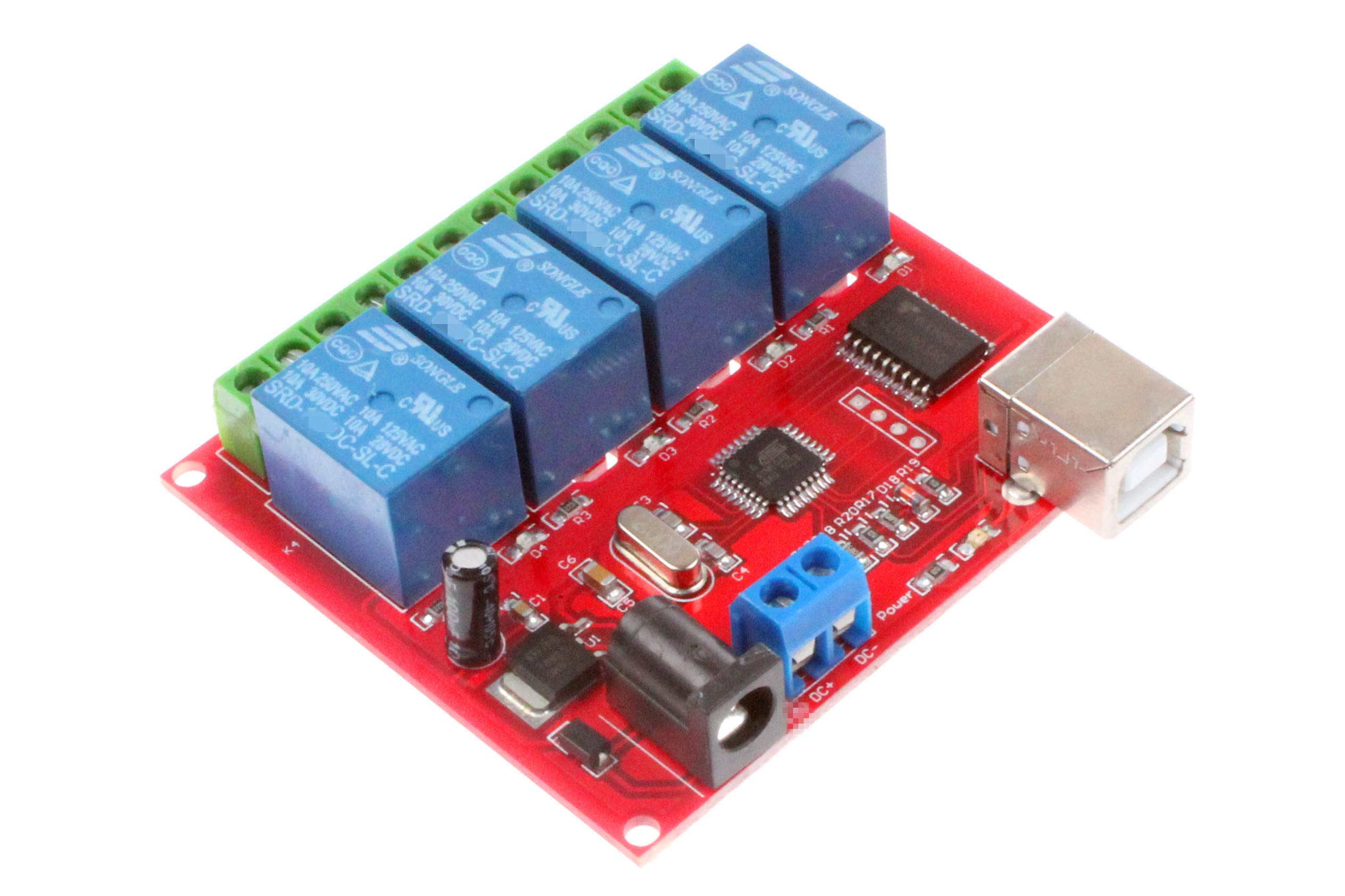

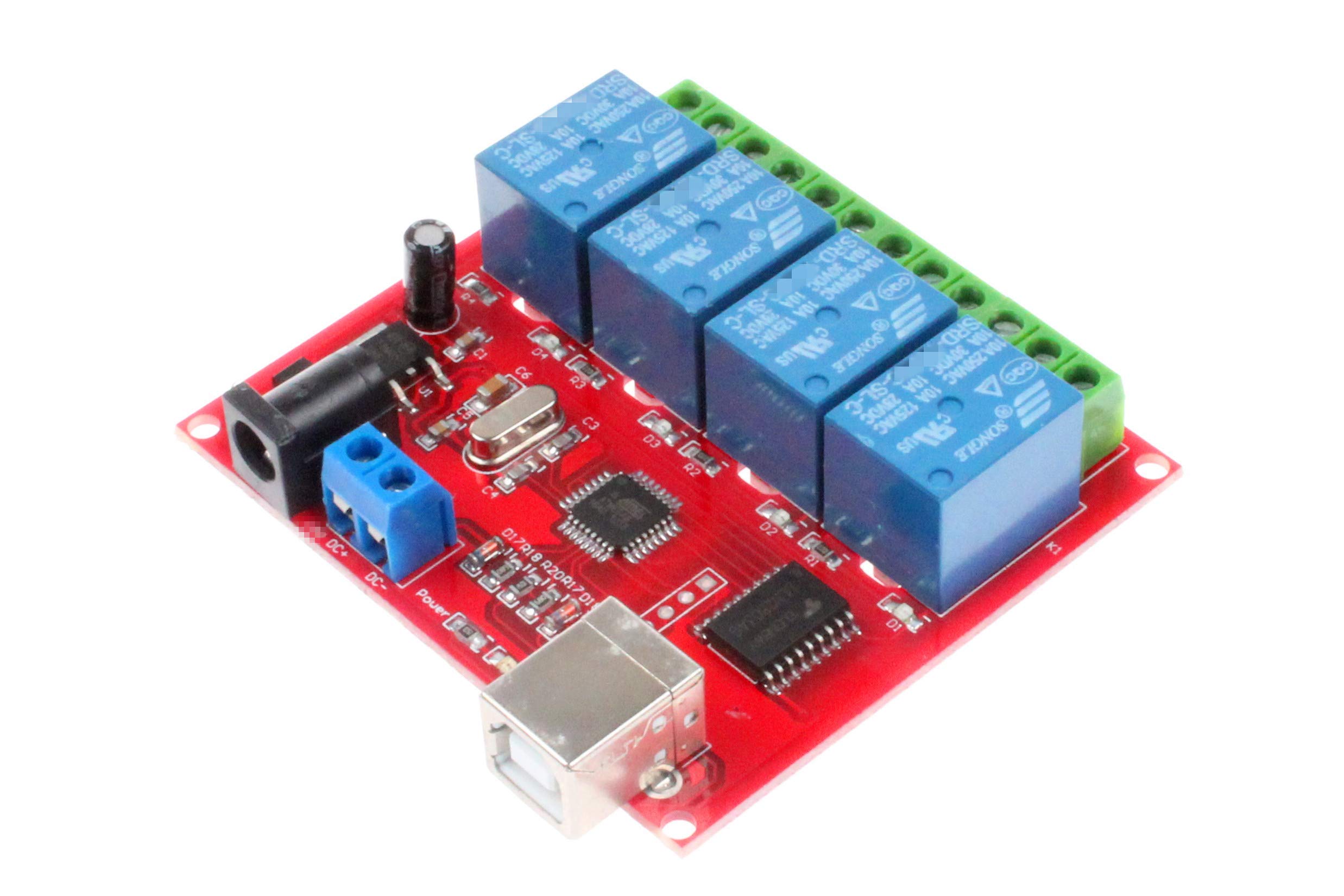

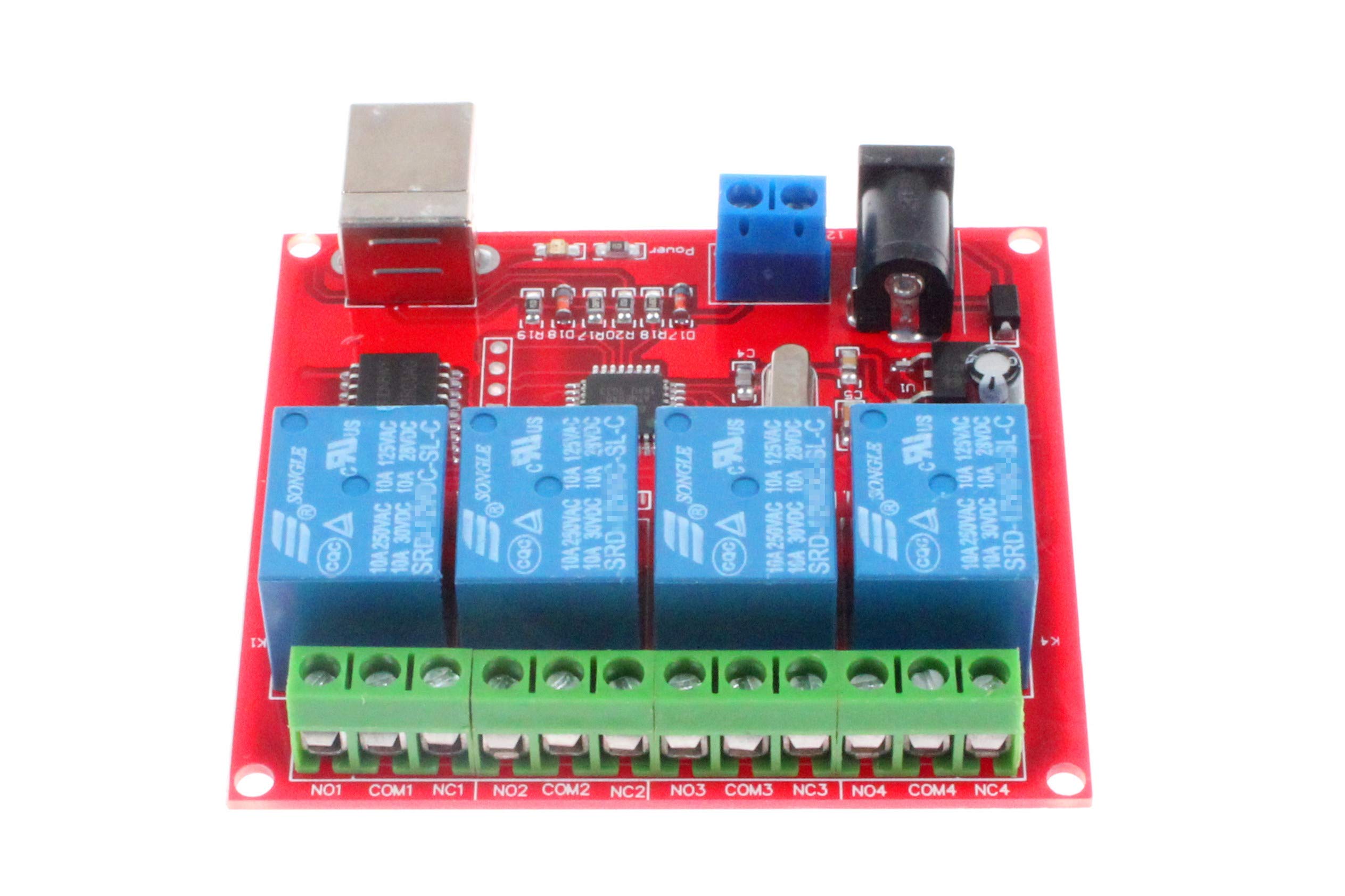

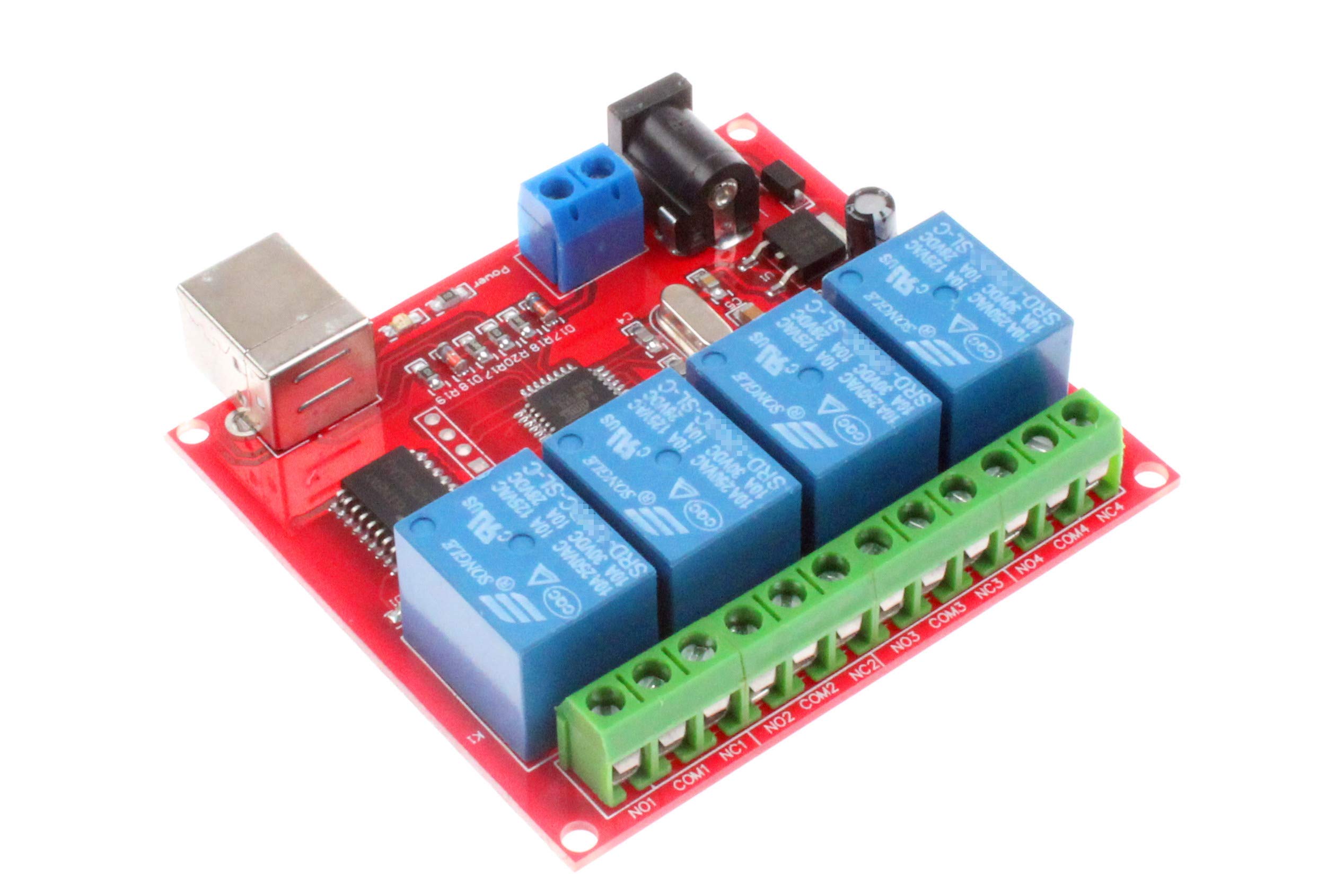

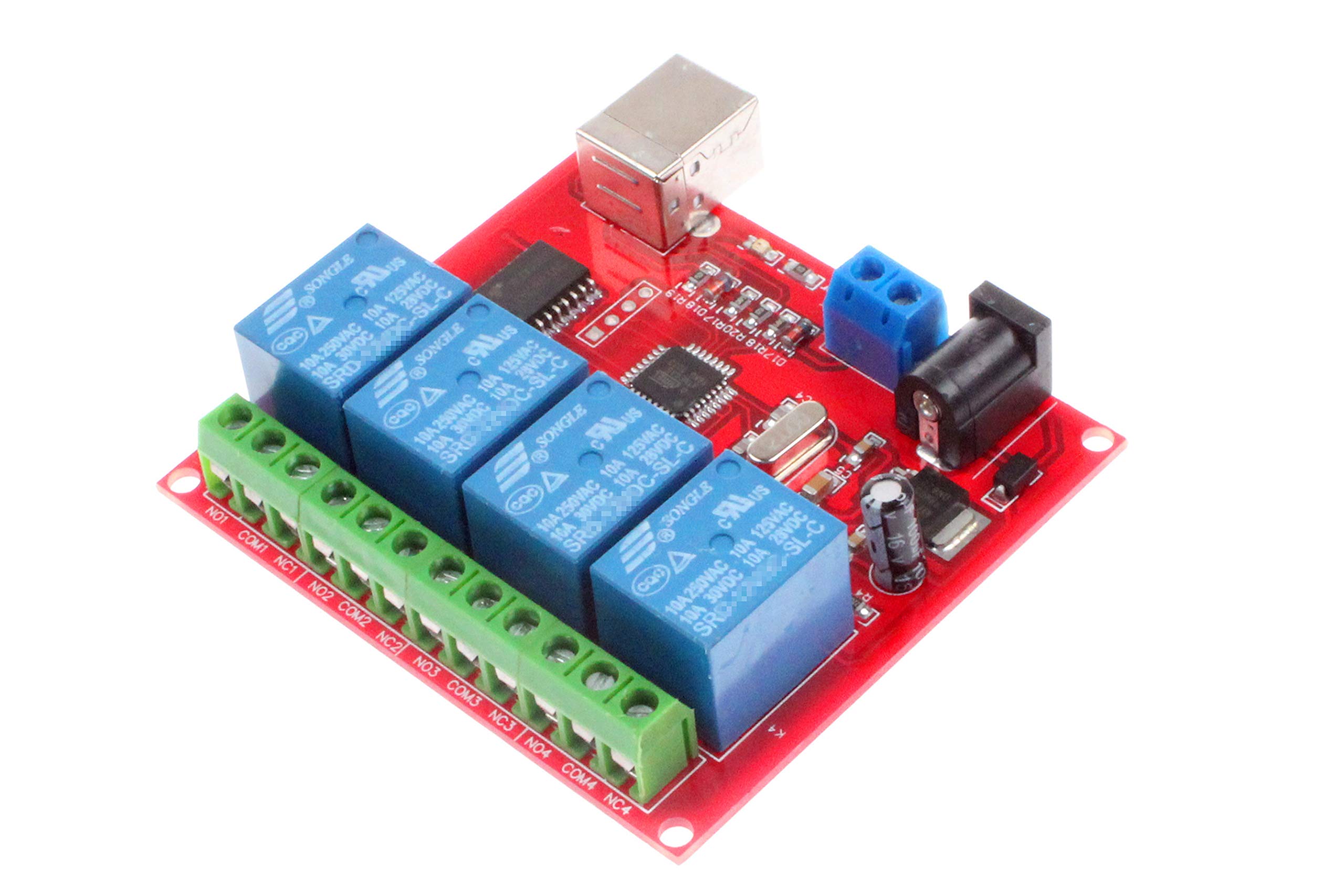

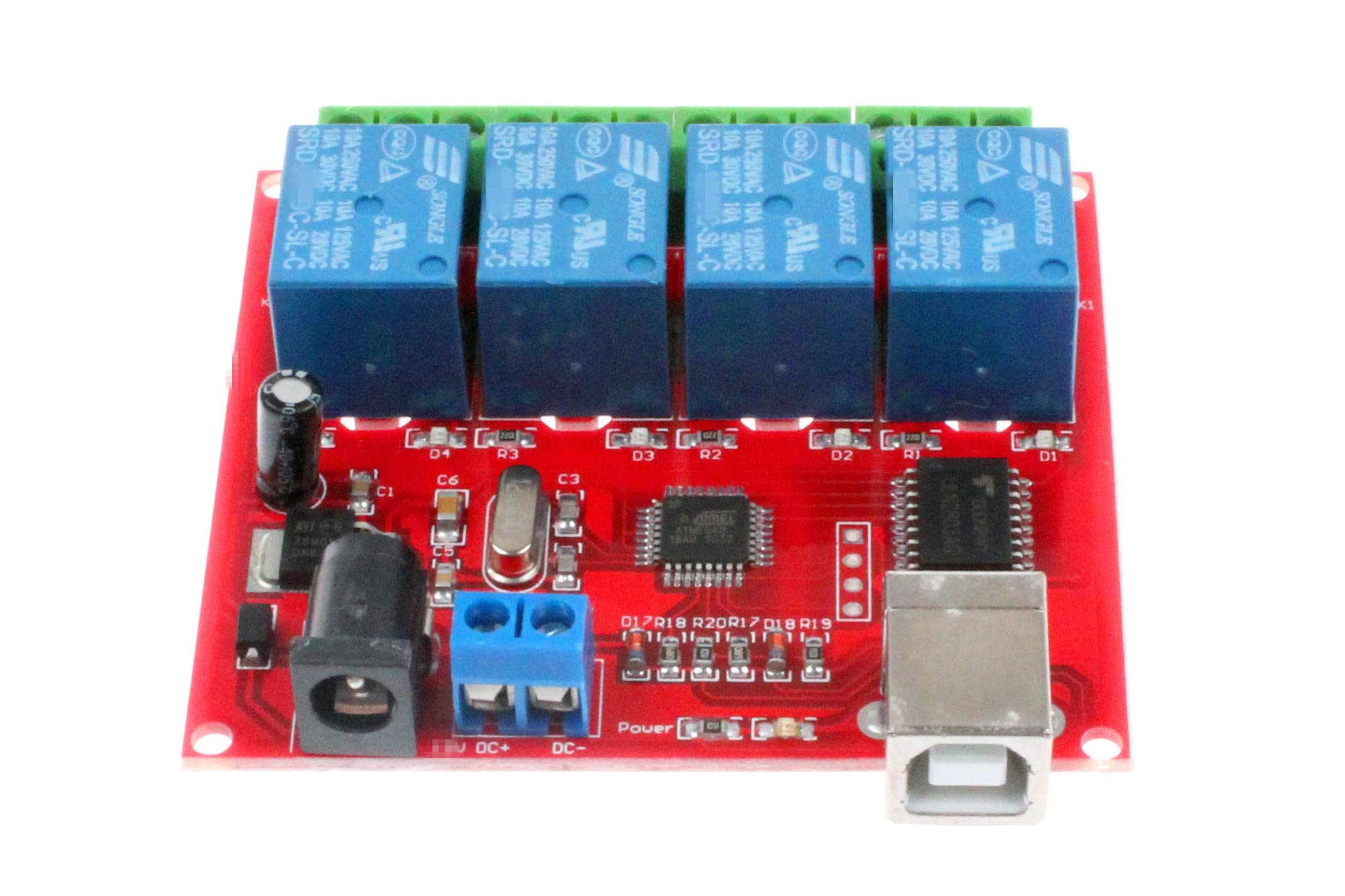

【NOTE: The 1-Channel 2-Channel module does not require an external power supply. 4-Channel 8-Channel modules require an external module power supply. 】 Product parameters: Input voltage: DC 5 V; Input current: ≥ 300mA; Wiring method: NC / COM / NO; Relay parameters: Maximum control AC 250V, 10A AC load and maximum DC30V 10A DC load; Module Package Inluded: 1pcs NOYITO 4-Channel 5V USB Control Switch Relay Module
The module uses HID technology, without any driver, plug and play. Support WIN 10 ， 7, XP 32-bit, 64-bit system, easy to use simple.
Onboard square USB interface, stable connection; use of high-performance USB control chip; use dedicated relay driver chip ULN2803, relay work more stable;
Power outlet and terminal, two access power mode convenient and flexible. After connecting the power, even if the computer shut down or USB from the computer pull out, the relay can also maintain the set state.
【NOTE The 1-Channel 2-Channel module does not require an external power supply. 4-Channel 8-Channel modules require an external module power supply. 】
PCB size 71.6mm * 65.3mm, fixed hole size 3mm, fixed hole center moment 67.4mm * 61.3mm.
NOYITO USB Relay External Use Development Library Test app Download
https//1drv.ms/u/s!AlzQUCOyZQhKgWS7uH0cskD7GHlD?e=wecwdX
Works as it should and the seller was very responsive to questions.
