SKU:63393461

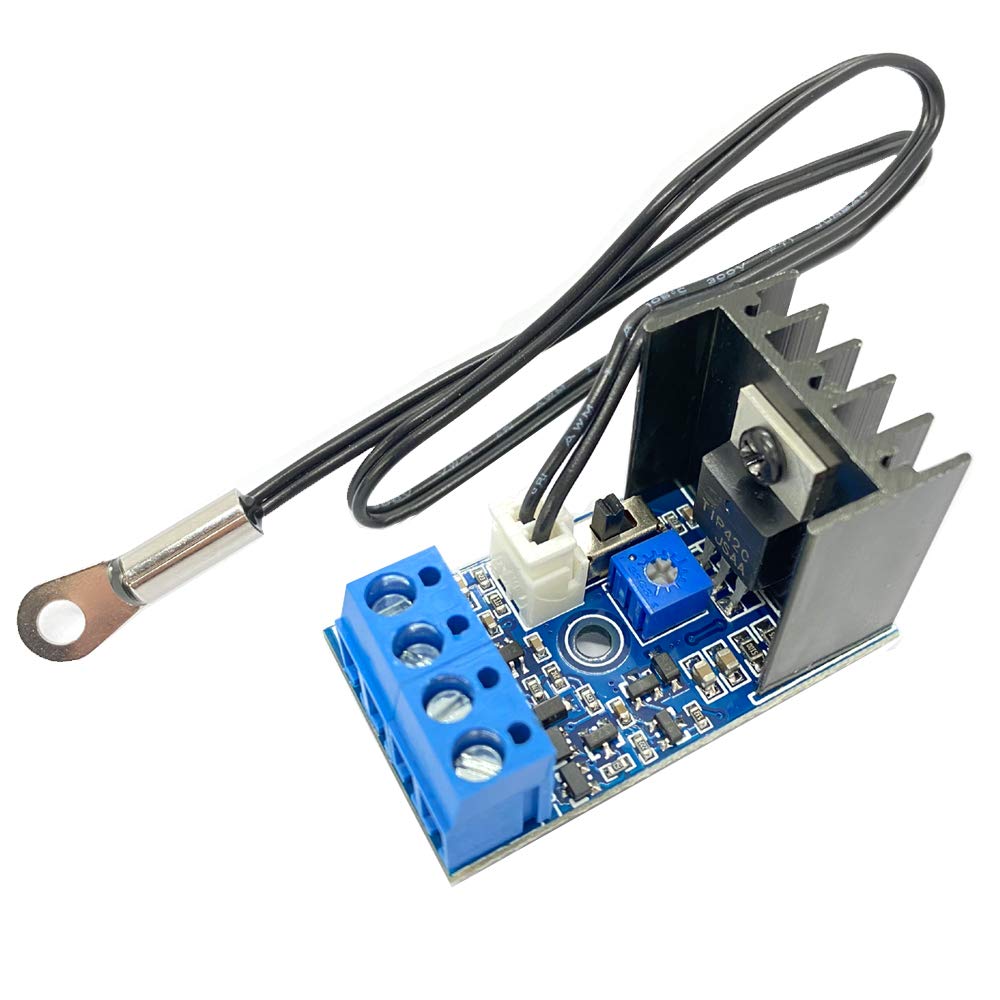

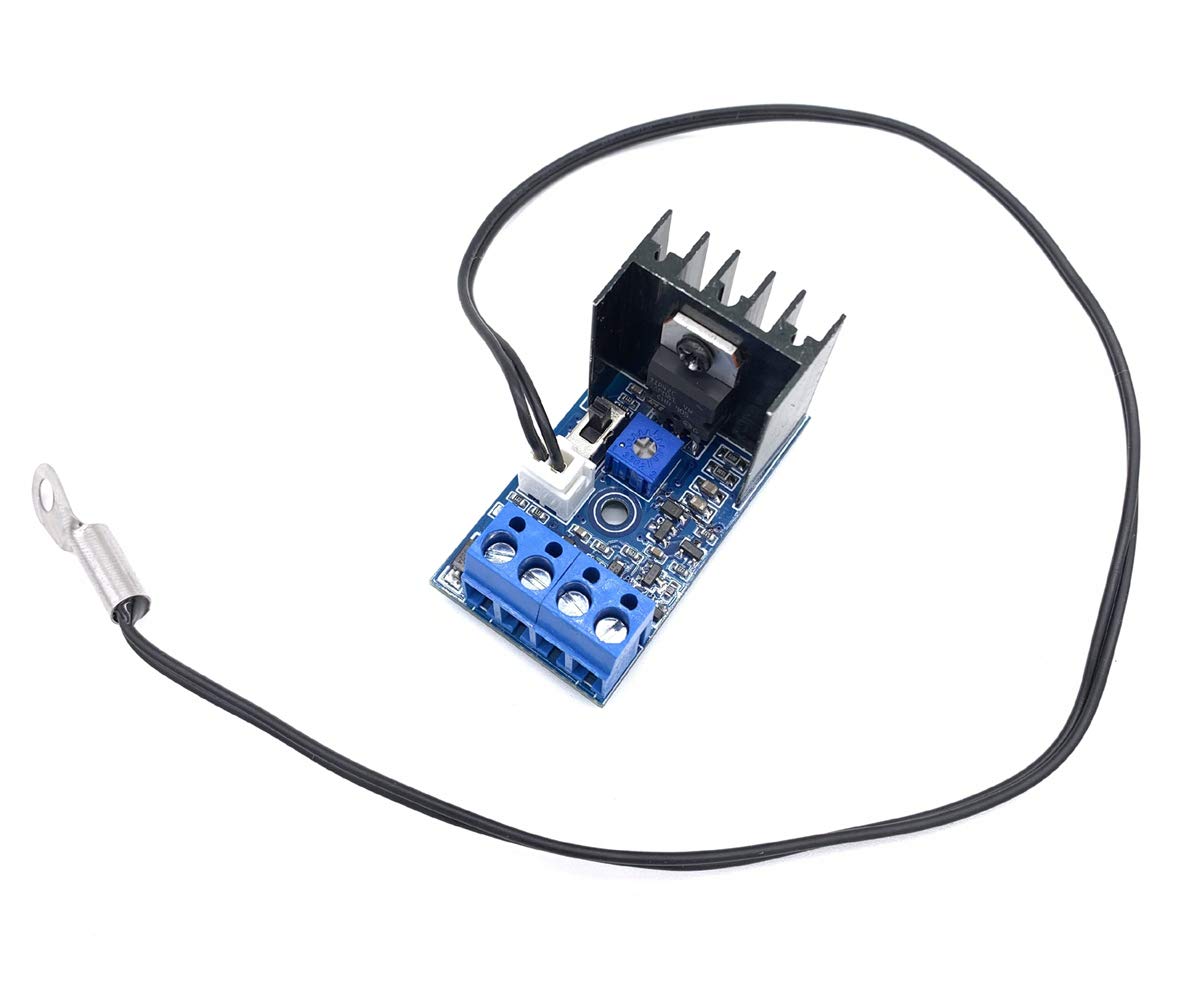

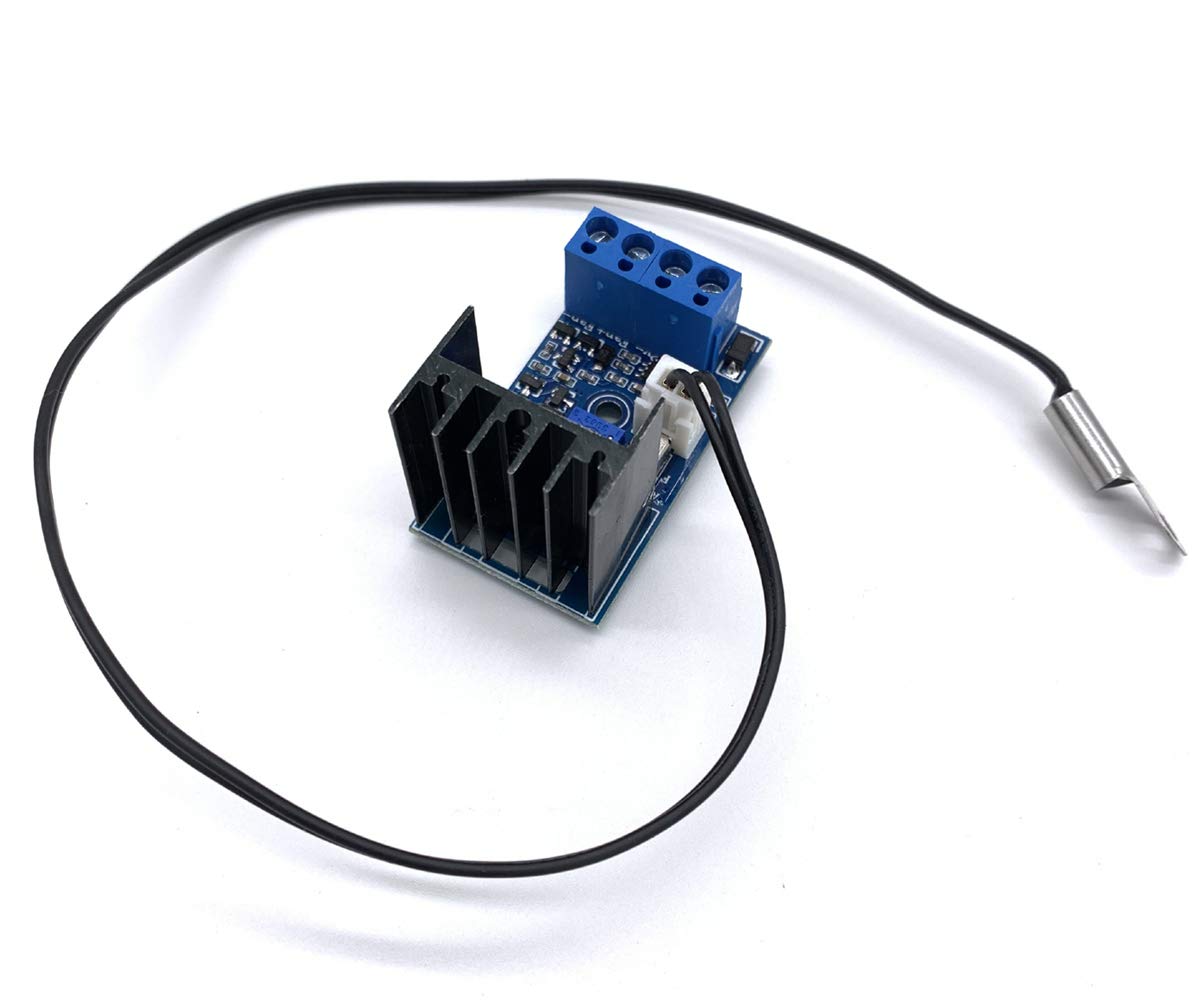

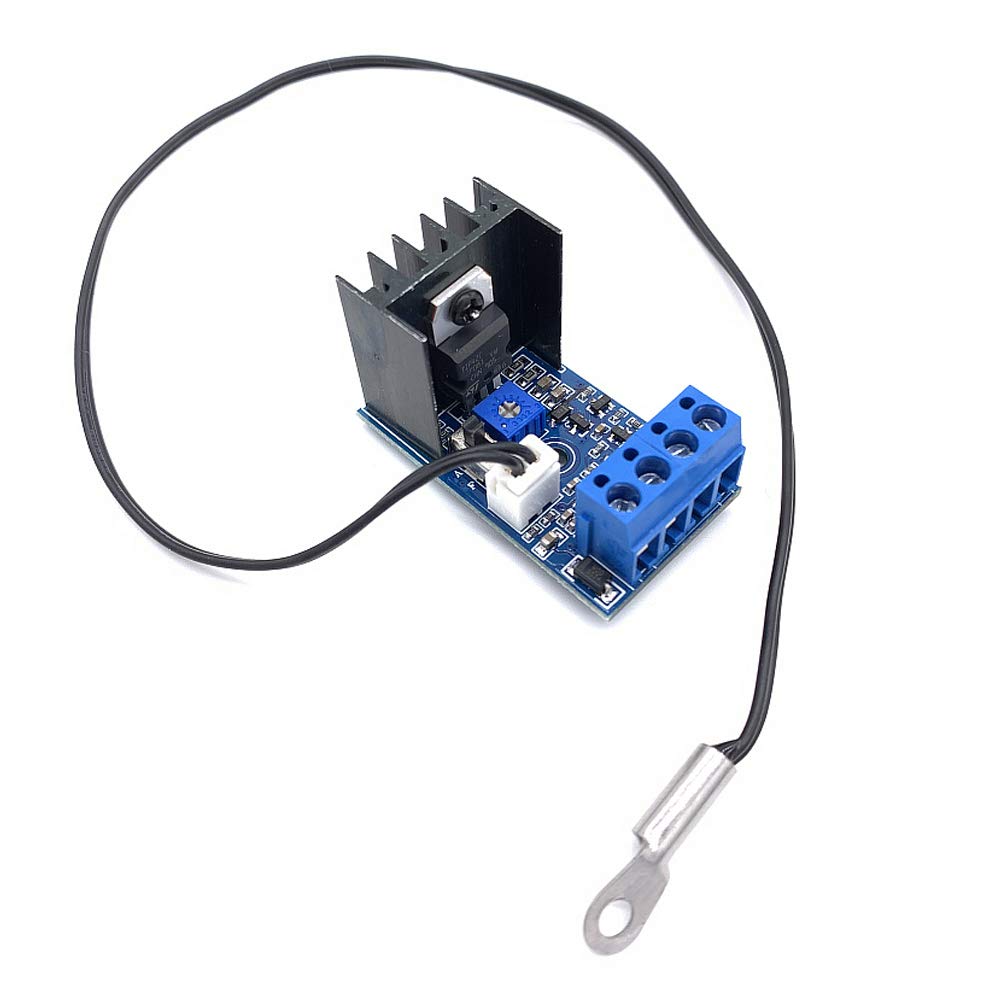

Package Included: 1x Speed Controller with Sensor Probe This DC12V governor can be controlled according to the ambient temperature of the fan speed, no manual control, automatic stepless speed, the higher the ambient temperature, the faster the fan speed control, the ambient temperature is below the set the start temperature, the governor can control the fan stops running, in order to save power and eliminate unwanted noise generated by the fan. Variety of 2, 3, 4-wire 12V fans are applicable. Tips: 3-wire/4-wire fans only need to connect the fan's power cord to the controller. Board overall size: 1.77x1.0x1.18inch (LXWXH). M3 mounting hole. Features: 1. With power anti-reverse protection, power line reversed, the board will not burn. 2. New dual-mode function: fixed temperature mode and adjustable temperature mode. 3. Fit for 2,3,4 wire 12V fan, stepless temperature control can be achieved. 4. Single temperature sensor, easier to use, more responsive control. 5. On board there is a Mode Switch, the switch to the F position, the governor fixed temperature mode (The onboard potentiometer is useless); switch to the A position, the governor of temperature adjustable mode. 6. When the Mode Switch is in A position, the temperature adjustment potentiometer can use it, rotating the potentiometer, you can change the fan-start temperature. 7. Fixed mode temperature at 30 degrees, the fan speed control starts from 30 to 50 degrees fan speed linear increase, 50 degrees fan at full speed. 8. Adjustable mode start temperature range: 15 to 50 degrees, the full speed range of 35 to 70 degrees (start-up and full of temperature difference of 20 degrees). 9. The temperature sensor has a fixed head, sealed with epoxy resin, waterproof and moisture-proof, the default cable length is 300mm, and it can also be extended with a cable by yourself. The maximum operating temperature of the temperature probe is 110 degrees, exceeding this temperature, the probe will be damaged! DC12V 4W Refrigerator Evaporator Fan Motor Replacement Parts DC 5-12V 2 Phase 4 Wire Stepper Motor Linear Rail 90mm Stroke Adjustable Backplate Mounting Bracket Holder Small DC Motor Power Wind Turbine Generator 7pcs Brooches Pin Sets Mini 4 Keys Macro Mechanical Keypad RGB Game Keyboard Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 4.3 out of 5 stars 183 4.4 out of 5 stars 20 4.3 out of 5 stars 48 4.0 out of 5 stars 38 — 3.1 out of 5 stars 23 Price $16.98$16.98 $16.58$16.58 $8.68$8.68 $22.99$22.99 — no data $16.99$16.99 Application DC12V 4W Refrigerator Evaporator Fan Motor Replacement Parts DC 5-12V 2 Phase 4 Wire Stepper Motor Step Angle 18 Degree Linear Rail 90mm Stroke Lead Screw Linear Stage Actuator Adjustable Backplate Mounting Bracket Holder Kit Compatible with Intel 775 1155 1156 1366 Motherboard Small DC Motor Power Wind Turbine Generator Teaching Kits 7pcs Cute Novelty Cartoon Inspirational Word Brooches Lapel Pins Set 4 Keys Macro Mechanical Keypad RGB Game Keyboard
This DC12V governor can be controlled according to the ambient temperature of the fan speed, no manual control, automatic stepless speed, the higher the ambient temperature, the faster the fan speed control, saving energy and reducing noise.
Whether it is a 2-wire, 3-wire or 4-wire fan (only connect power cable), whether PWM or brushless fans, as long as the fan voltage is within 12V, current less than 1A, the governor apply! Also can drive a of fans (total current must<1A). [3-wire/4-wire fans only need to connect the fan's power cord to the controller]

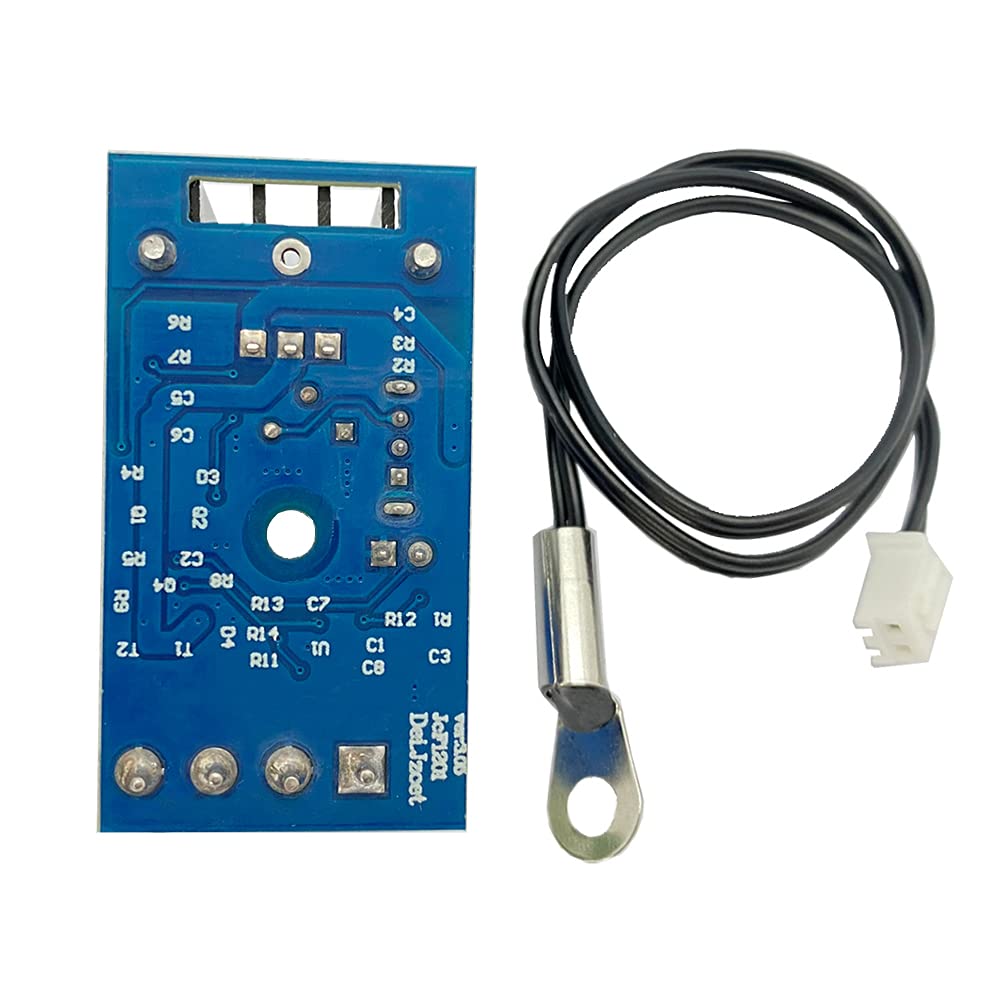

The temperature sensor is connected with a cable in the form of mounting holes to facilitate detection of the temperature specified temperature point. Temperature probe is sealed with epoxy resin, waterproof and moisture-proof, the temperature probe maximum use temperature of 110 degrees. Sensor probe length 300mm/11.5inch.

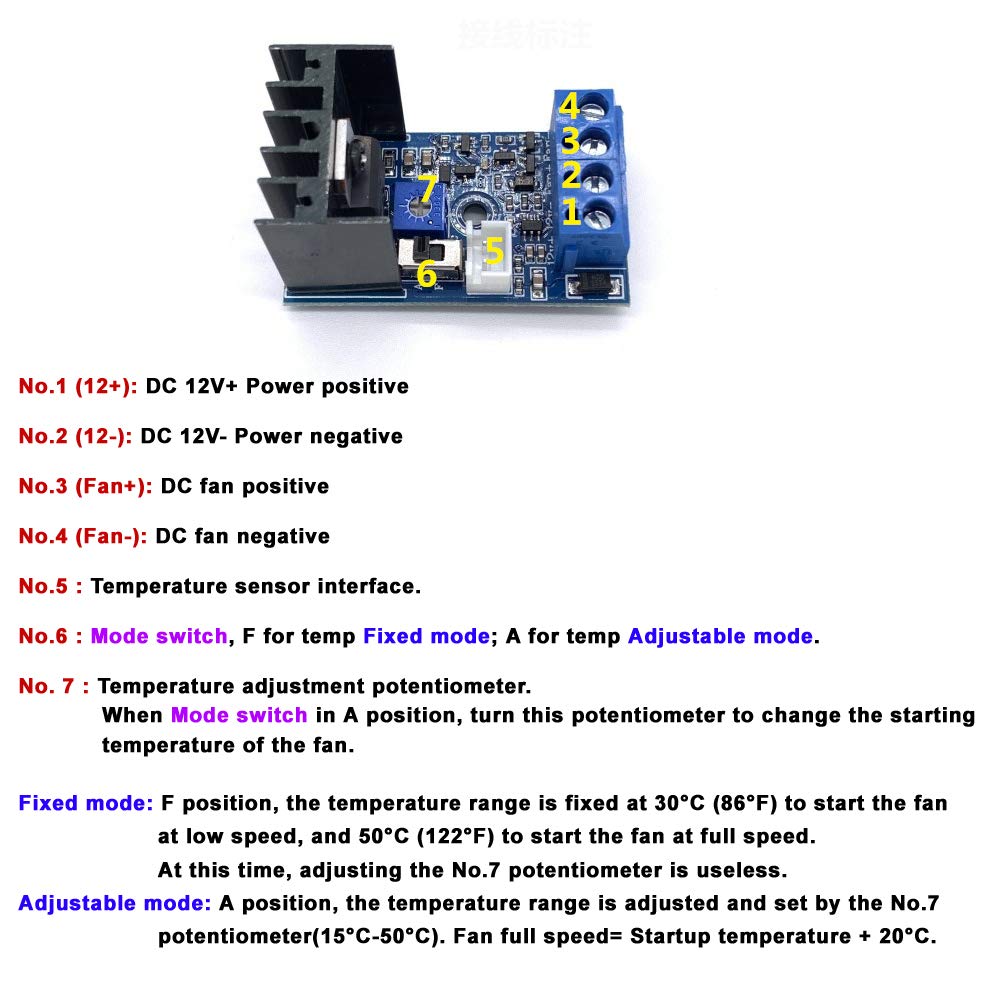

Dual working mode optional, fixed starting temperature or adjustable starting temperature. Fixed mode temperature and temperature of 30°C(86°F), the governor control fan start, 30 to 50 degrees fan speed linear increase, 50°C(122°F ) above the fan at full speed. Adjustable mode start-up temperature range 15 to 50 degrees, full speed range of 35 to 70 degrees (start and full-speed temperature difference of 20 degrees).
Board size 1.77x1.0x1.18inch/ 45x25x30mm (LXWXH), M3 mounting hole. ( Note that It is best to read the main picture instructions before use)
Used this for controlling venting fans in utility switching boxes in the desert. I need the speed of the fan to adjust to the wildly fluctuating temperatures of the environment, and keep the temps from soaring inside the box.
