Zero Delay USB Arcade Encoder for Switch/PC/PS3 - Gaming & DIY Controls

Product Description

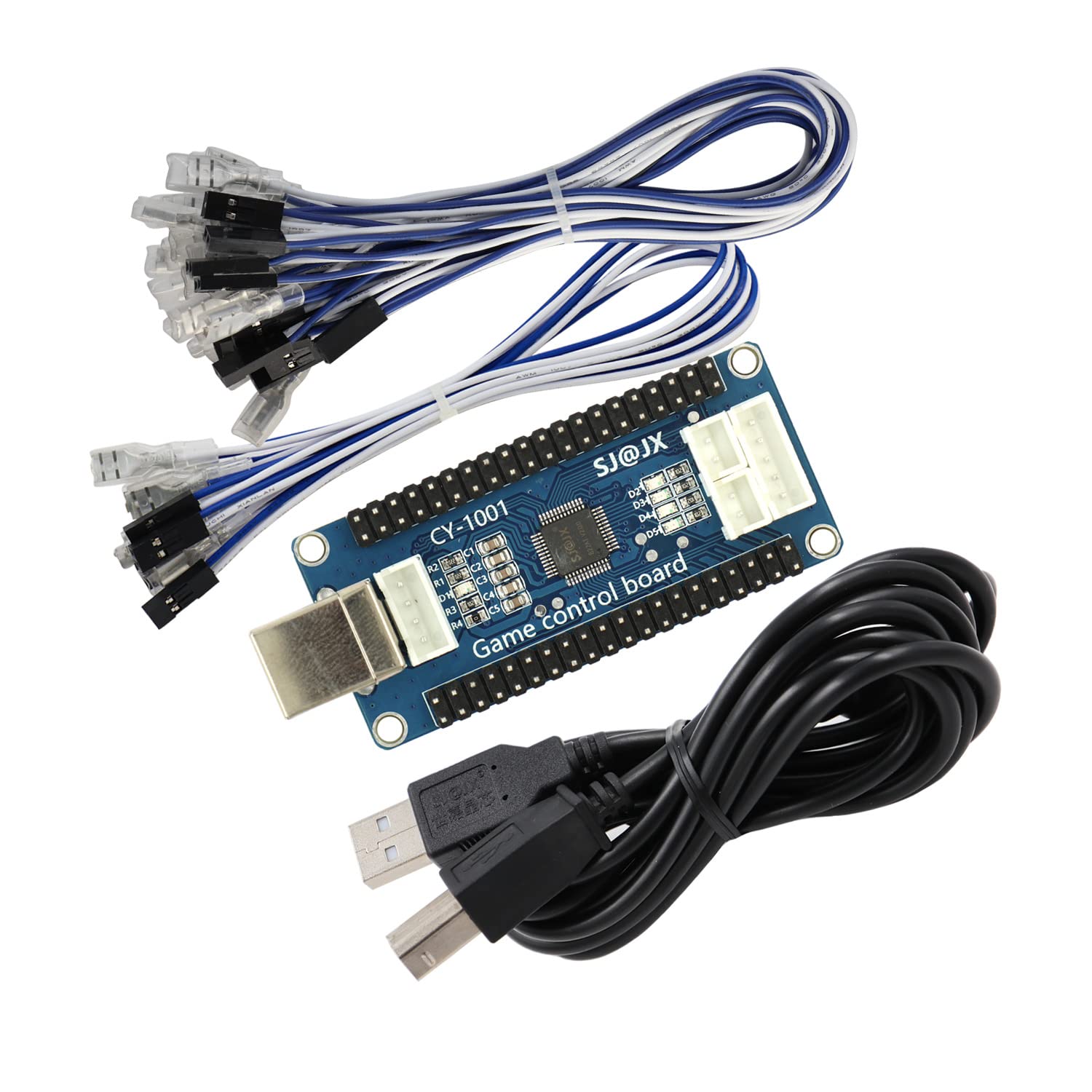

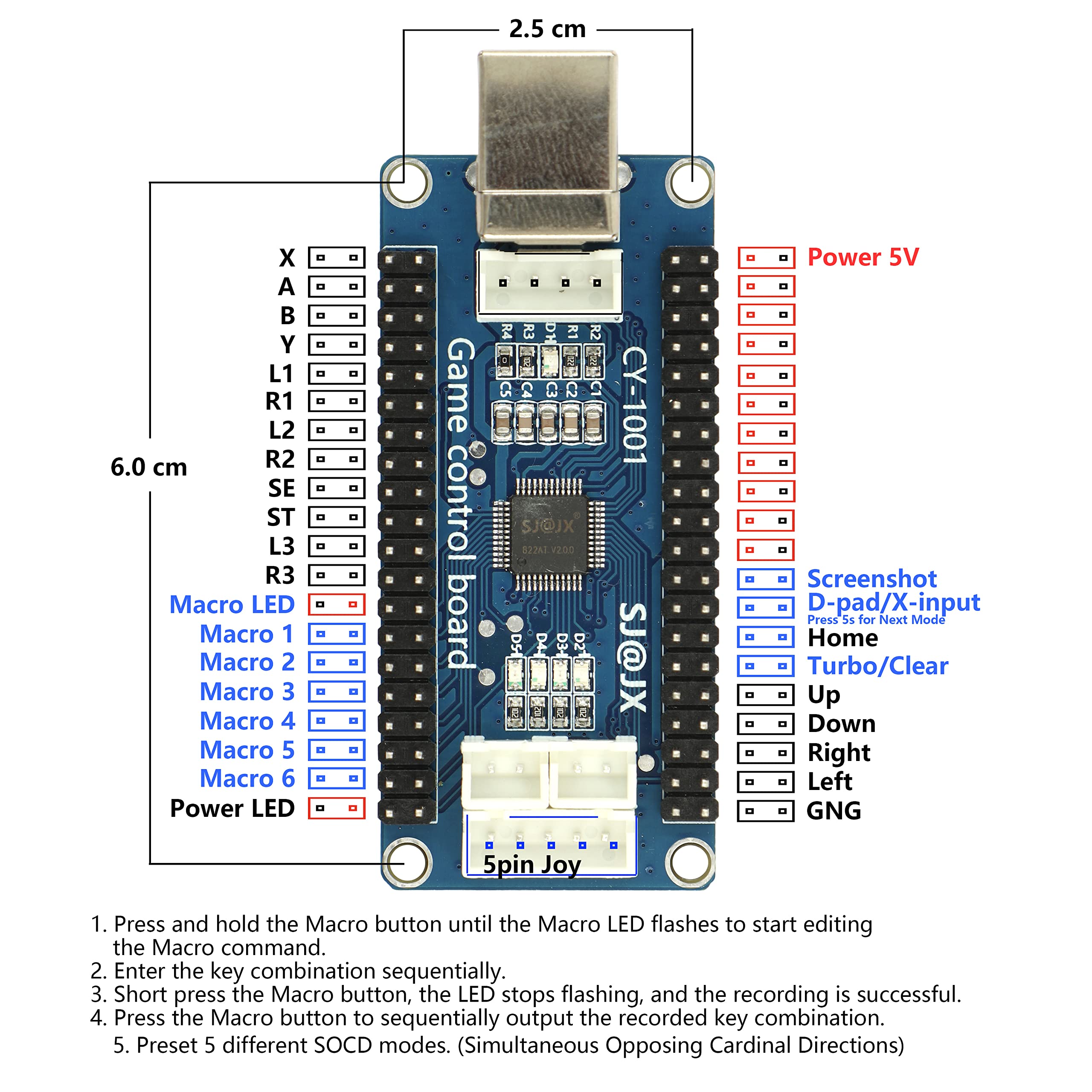

Include:1x Macro Encoder Board,1x USB Cable,Multiple cables for buttons and joysticks.Macro commands and SOCD function. More notes on extended functionality.1. Press and hold the Macro button until the Macro LED flashes to start editing the Macro command.2. Enter the key combination sequentially.(1) Available buttons: A, B, X, Y, L1, L2, L3, R1, R2, R3, SE, ST.(2) Available joysticks: up, up-left, left, down-left, down, down-right, right, up-right.(3) The key value is output at a fixed rate, and the time interval for inputting the key value is not recorded.3. Short press the Macro button, the LED stops flashing, and the recording is successful.4. Press the Macro button to sequentially output the recorded key combination.5. For example:(1)Press and hold the Macro 1 button until the light flashes.(2)Press in sequence: left, down-left, down, A, B.(3)Short press the Macro 1 button, the indicator light stops flashing.(4)Then, short press the Macro 1 button, the encoding board will output left, down-left, down, A, B in sequence.6. SOCD (Simultaneous Opposing Cardinal Directions):Preset 5 different SOCD modes.Select the mode you want, hold down the X, A, B and Y button, then press the select button once.The LED blinks a few times and then turns off, and the setting is successful.(1) Button X + Select: ←+→=→, ↓+↑=↑, ←+↓+→=↓.(2) Button A + Select (default. Applies to most situations.): ←+→=None, ↓+↑=None, ←+↓+→=↓.(3) Button B + Select: ←+→=→, ↓+↑=↑, ←+↓+→=↘.(4) Button Y + Select: ←+→=None, ↓+↑=↑, ←+↓+→=↓.(5) Button L1 + Select: ←+→=←, ↓+↑=↑, ←+↓+→=↓.
