SKU:80876077

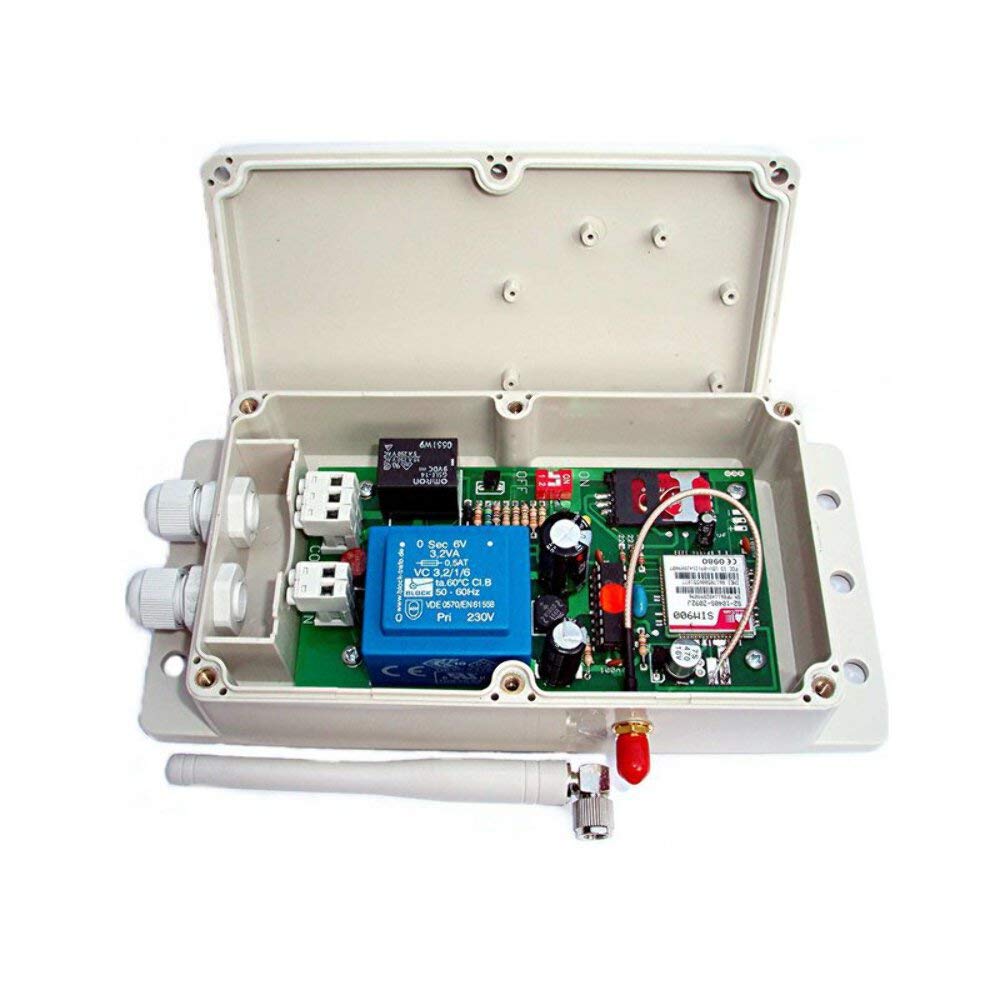

The GSM Multi Switch (240v) is a UK manufactured GSM Switch designed to attach to your electronics enabling you to activate them using your mobile phone from anywhere in the world. This can prove to be very useful in a variety of situations! Simply call or text the unit to switch your device on or off. You can also text the GSM Multi Swicth (240v) with an amount of time you want your device on for. This can range from 1 – 999 minutes or you can pulse the relay for 7 seconds. The GSM Multi Switch will then send an acknowledgment text back so you know it has taken your command and provide a status report on both relays. The board and box have already been assembled so there is no drilling or building required. Simply unscrew the lid and insert your sim card. The GSM Multi Switch is easily wired into your electronic devices/systems. Simply connect two wires into the removable connector headers from our unit into the device you are connecting it to. Unlike other models it also has two relays so you can independently control two devices using the one unit. This then links the multi switch to your device. We offer full support on installations so if you are unsure please phone or email us and we can let you know where the wires should go. Features Include INPUT – 240vac (12/24vdc & 115VAC is available) 2x Output Relay – 10 AMP N/O or N/C Volt free. Phone list for added security of up to 80 stored numbers. You can set the timer for seconds or minutes. (max 999 minutes) Pulse Function for both relays. Sim Active Function. Dimensions – L150 x W90 x H45mm Dimensions PCB Only – L125 x W67mm Quad band freq – 850, 900, 1800, 1900mhz Operating Temperature: -10…+40°C Status Report for both relays. Text for signal strength. Micro 2G or 4G sim card Set the timer for 1-999 minutes
Switch on your devices remotely from anywhere in the world
Allocate a time for the device to be on, perfect for heating & security systems
240vac version - no need for extra power supply
IP 65 Enclosure rating which means the box is weathered for outside installation
GSM Frequency Quad band freq 850/900/1800/1900 MHz (worldwide use)
Both brilliant and bizarre. But you should definitely buy one if you need a simple to use on/off remote switch; say for your hot water or your heating. It offers two switches in either "always on" or "always off" mode. Both can be controlled by text message, which can also give "phone" signal strength and whether the switch positions are on or off. The first switch can also be "toggled" on or off by just ringing the number; and the second can take a text to switch it on, that also tells it to switch off after a period of anything up to 999 minutes (over 16 hours); or the reverse: off then on, if you connect it that way. You can also set the phone numbers from which it should accept commands, and so reject all others.I think each switch will carry a 10 Amp current (do check), but I wouldn't connect more than 8 Amps (1840 Watts at 230v) for continuous use; and I am actually using it switch-on/off four 20 Amp relays which activate my underfloor storage heating. It's built in England and is very well made; even excellent. All that is what makes it brilliant.Connecting up, is where it gets a tad bizarre... fidly and unnecessarily time consuming. Probably because they use a very well made weather proof box that's "off the shelf" and not designed specifically for this switch. (msg to manuf: "Great product, but you need to sort this fellas - it's too easy to damage the GSM aerial connection when wiring up in anything but the most comfortable environment and almost impossible to reach the lower two screw fixing holes once it is wired up". For safety and ease, I wired up all my connections before fixing it in its location.) But just take your care with it, allow 3x as much time as you would expect 45 mins instead of 15 mins, and you'll be fine. One final thing, mine didn't come with a SIM card. So I'm using a UK Vodafone PAYG, which is easy to top-up online, and costs me 5p for every status message the switch sends to my Irish mobile, even though the switch is in France. I'm also able to "schedule" free text messages from my Vodafone Ireland account to this UK SIM and have it activate at a preplanned time. Very very happy with my purchase.
